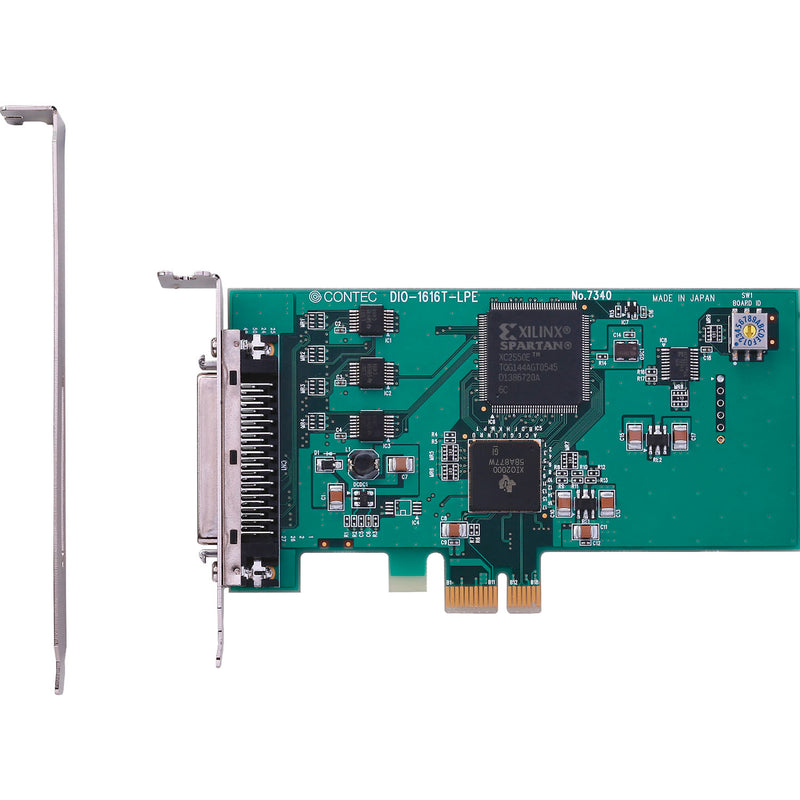

This PCI Express bus-compliant interface board is for input/output uninsulated TTL-level digital signals. Therefore, it offers input and output for up to 16 channels and enables a fast response (within 200nsec). You can use all input signals as interrupt inputs, disable/enable the interrupt in bit units, and select the interrupt edge. The rated output signal is up to 30VDC, 40mA per signal.
In addition, the board supports both low-profile and standard size slot installations (interchangeable with an included bracket). It is also equipped with the same function as the PCI board PIO-16/16T(LPCI)H. The connector shape and the signal assignment for the connector is compatible with PIO-16/16T(LPCI)H.
The API function library package [API-PAC(W32)] allows you to create Windows application software for this board in your favorite programming language, supporting Win32 API functions, such as Visual Basic or Visual C++.
