  • SKU: CPS-MG341-ADSC1-931
  • Availability: In Stock Many in stock Out of stock BUILT TO ORDER - SHIPS IN 2 - 6 WEEKS

CPS-MG341-ADSC1-931 CONPROSYS M2M Gateway

$829.29
Shipping calculated at checkout.

    Monitor equipment anywhere in the world!

    The CONPROSYS M2M gateway communicates data from the sensor to an application software, allowing the transmission of collected data to the cloud with simple settings.  In fact, with the CONPROSYS M2M series, you can collect data from various types of facilities which can be managed centrally. Thus, this is the perfect remote monitoring solution through the Cloud.

    Thanks to this durable and compact gateway, all the processes from development to operation can be performed on a web browser. The functions, such as Web monitoring and alarm processing by I/O information, enable you to create a Cloud System at low cost and in a short time.

    Supports a Varied Lineup of PLCs and Modbus devices

    A single CONPROSYS M2M gateway can collect data from multiple PLC controlled equipment. In addition, this gateway supports PLCs as well as various Modbus devices. In the facilities with PLC controlling, data can be collected thanks to the M2M Gateway for PLC controller, and in facilities without PLC controlling, data can be collected by M2M gateway.

    Data Collection

    Up to 10 Ethernet/calculating links can be connected. Data collection from 128 PLCs and 256 group registers can be carried out. Up to 10000 data mapping for Modbus is possible.

    Web Monitoring

    The controller contains a Web server. Even with the PC located remotely, I/O information can be monitored and updated through a Web browser. On the monitoring screen, the standard GUI parts (graphic, slider, button, etc.) can be freely arranged. All operations including monitoring layout, making relations with I/O information, can be achieved through a Web browser.


    Web Task Script

    By combining icons such as arithmetic operations, conditional branching, data outputting, you can set up the executions or its processes like drawing them in the flowchart. All operations can be completed on the Web browser.

    Embedded CPU

    The Gateway is equipped with the ARM®Cortex®-A8 processor (600MHz) and 512MB DDR3-SDRAM system memory. On-board NOR-FLASH is utilized for a booting device. The CPS-MG341-ADSC1-931 includes an OPC UA server function.

    Software Compatibility

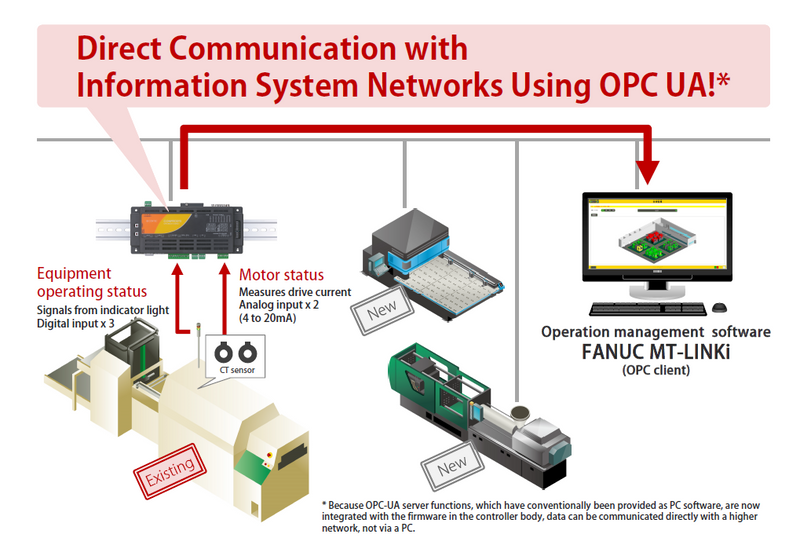

    The gateway can communicate directly with HMI and SCADA software which supports OPC UA clients from various makers.

    OPC UA Standard

    OPC UA (Unified Architecture) is an advanced model of OPC specifications, which presents a refined capability of transmitting and receiving semantic description data. OPC UA is a platform independent standard based on TCP.

     Compatibility of Vendors

    This M2M gateway series supports devices from a variety of vendors, including Mitsubishi’s MELSEC series, Omron’s Sysmac series, JTEKT’s TOYOPUC series, Panasonic FP series, and Keyence KV series.

    Rugged Features

    This M2M gateway is perfect for industrial environments because it works with a wide temperature range between -20 and - 60°C (-4 - 140°F). This durable hardware features a power supply of 12 - 24 VDC.

    Simplified Installation

    This compact gateway allows daisy-chain connections and does not require a HUB. Also, this hardware can be installed on a DIN rail, and it offers fixed mounting options.

    Inputs and Outputs

    • Isolated RS-422A/485
    • Isolated digital input/output
    • Isolated counter input
    • Inter-channel isolated analog input
    • RS-232C
    • LAN interface
    • Ethernet Hub.

    General

    Model Online Model
    CPU ARM Cortex-A8 600MHz
    Memory On Board 512MB DDR3 SDRAM
    ROM On-Board 64MB NOR Flash for OS
    LED Power (Green)/Status 1 (Green)/Status 2 (Red)
    Switch Reset SW, Shut Down SW, Full Duplex/Half Duplex Switching SW
    RTC RTC built-in (battery life :10 years or longer at 25°C) lunar inequality ±15sec (at 25°C)
    Physical dimensions (mm) 188.0(W)×78.0(D)×30.5(H) ( No projection included)
    Weight 250g
    Installation method Quick mounting on the 35mm DIN rail, Mounting on the wall using the screws *8
    OS Linux kernel 3.2
    Operating ambient temperature -20 - +60°C *9
    Operating ambient humidity 10 - 90%RH (No condensation)
    Non-operating ambient temperature -20 - +60°C
    Non-operating ambient humidity 10 - 90%RH (No condensation)
    Floating dust particles Not to be excessive
    Corrosive gases None
    Line-noise resistance AC Line/±2kV *10
    Signal Line /±1kV(IEC61000-4-4 Level 3, EN61000-4-4 Level 3)
    Static electricity resistance Touch /±4kV(IEC61000-4-2 Level 2, EN61000-4-2 Level 2), Air /±8kV(IEC61000-4-2 Level 3, EN61000-4-2 Level 3)
    Vibration resistance, Sweep resistance 10 - 57Hz *11 /semi-amplitude vibration 0.15mm, 57 - 150Hz/2.0G 40minutes each in X, Y, and Z directions (JIS C60068-2-6-compliant, IEC60068-2-6-compliant)
    Shock resistance 15G half-sine shock for 11ms in X, Y, and Z directions (JIS C 60068-2-27 –compliant, IEC 60068-2-27 -compliant)
    Grounding Class D grounding (previous class 3 grounding), SG-FG/ non-conduction
    Standard VCCI Class A, FCC Class A, CE Marking (EMC Directive Class A, RoHS Directive), KC, UL

    LAN

    Model Online Model
    Transmission standard 10BASE-T/100BASE-TX
    The number of channels 2 *1
    Connector RJ-45 Connector
    LED Speed (Yellow), Link/Act (Green)

    RS-422A/485

    Model Online Model
    Transmission scheme Asynchronous serial transmission (Full Duplex/Half Duplex)
    The number of channels 1
    Isolation Bus Isolation/500VDC(when surge protected parts between SG-FG are unimplemented)
    Baud Rate 300bps - 115.2kbps
    Data length 5, 6, 7, 8bit 1, 1.5, 2stopbit
    Parity check Even, Odd, Non-parity
    Connector 2-piece 3.5mm pitch 5-pin terminal (TX+, TX-, RX+, RX-, SG)
    Applicable wire AWG28 - 16
    LED Transmission (Yellow), Reception (Yellow)
    Switch DIP Switch (Full Duplex /Half Duplex, Terminator (ON/OFF))
    Surge protection element each signal - SG Interactive TVS diode
    Stand off voltage : ±13V, Peak pulse power : 400W(1msec)
    Surge protection element SG - FG Gas discharge tube arrester
    Discharge voltage : ±300V, impulse current tolerance : 2000A(8/20μsec, 10 times)

    USB

    Model Online Model
    Transmission standard USB2.0 standard follow
    The number of channels 1
    Connector TYPE-A

    SD Card Slot

    Model Online Model
    Standard SD standard follow
    Connector SD memory card slot
    LED Read/Write (Yellow)

    RS/232

    Model Online Model
    Baud Rate 300bps - 115.2kbps
    Isolation Non-isolated
    Data length 5, 6, 7, 8bit 1, 1.5, 2stopbit
    Parity check Even, Odd, Non-parity
    The number of channels 1
    Connector 9-pin D-SUB connector (Male)
    LED Transmission (Yellow), Reception (Yellow)

    Digital Input, Counter Input

    Model Online Model
    Input type Opto-coupler Isolation Input (Compatible with current sink output and current source output) (negative logic) *2
    Isolation/Resistance Bus Isolation /500VDC, Opto-coupler Isolation/1000V
    Built-in power supply 12VDC (compatible with current sink output) *3
    Input type 5.6kΩ
    Input ON current 1.6mA or more
    Input OFF current 0.16mA or less
    Response time Within 200μsec *4
    Interrupt (Digital input) 4 interrupt input signals are arranged into a single output of interrupt signal. An interrupt is generated at the falling edge (HIGH-to-LOW transition) or rising edge (LOW-to-HIGH transition). (setting can be done by software)
    The number of channels 4 (It is possible to allocate 2channels to counter input)
    Count type Up count
    Max. count FFFFFFH (binary data)
    Counter response speed 1kHz (Max.), Duty: 50% (Max.)
    Interrupt (Counter input) One interrupt caused upon channel count match
    Timer None
    LED DI0 - DI3 (Yellow)
    Surge protection element each signal to B_COM Interactive TVS diode Stand off voltage : ±30V, Peak pulse power : 400W(1msec)

    Digital Output

    Model Online Model
    Output type Semiconductor relay output
    Isolation/Resistance Semiconductor relay isolation/1000V
    Maximum output voltage / current 26.4VAC/VDC/100mA
    Response time Within 2msec
    ON resistance 8Ω or less (at 25℃)
    OFF leakage current 4μA or less (at 25℃)
    The number of channels 2
    LED DO0 - DO1 (Yellow)
    Surge protection element + to - Interactive TVS diode, Stand off voltage : ±30V, Peak pulse power : 400W(1msec)

    Digital Input/ Counter Input/ Digital Output

    Model Online Model
    Connector 2-piece 3.5mm pitch 10-pin terminal (DI_ACOM, DI0, DI1, DI2, DI3, DI_BCOM, DO0+, DO0-, DO1+, DO1-)
    Applicable wire AWG28 - 16

    Analog Input

    Model Online Model
    Input type Current Input
    Input range 0 - 20mA
    Maximum input rating 30mA
    Input impedance 250Ω
    The number of channels Differential Input 2ch
    Channel switching rate 3msec/ch (Max.) *5
    Conversion rate The sampling interval differs by the software programmed by the user.
    Data buffer None
    Resolution 12bit
    Non-Linearity error *6 ±10LSB
    Isolation/Resistance Bus Isolation /500VDC, Inter Channel Isolation /200V
    Connector 2-piece 3.5mm pitch 3-pin terminal (AI+, AI-, SG)
    Applicable wire AWG28 - 16
    LED AI0 - AI1 (Yellow)

    Power Supply*7

    Model Online Model
    Rated input voltage 12 - 24VDC
    Input voltage range 10.8 - 30VDC
    Power consumption 12V 0.7 A (Max.), 24V 0.4A (Max.)
    Connector 2-piece 3.5mm pitch 3-pin terminal (V+, V-, FG)
    Applicable wire AWG24 - 16
    Surge protection element V+ - V-, V- - FG Interactive TVS diode, Stand off voltage : ±30V, Peak pulse power : 400W(1msec)

    Notes:

    *1 The LAN ports of the CPS-MG341-ADSC1-931 are independent, which makes it possible to split the network segment.

    *2 Data 0 corresponds to High level and Data 1 corresponds to Low level.

    *3 The default setting is for an external circuit power supply. With a software command, it can be switched to the built-in power use.

    *4 Response time of Opto-coupler.

    *5 Switching time of Inter Channel.

    *6 The non-linearity error means an error of approximately 0.07% occurs over the maximum range at -20 °C and +60 °C ambient temperature.

    *7 Use power cable within 3meters.

    *8 Commercial screws are required (fit into φ3.5 hole).

    *9 If you use the USB with bus power, operate the product at between -20 and +55°C.

    *10 When you use the CPS-PWD15AW12-01 (optional product).

    *11 When you use an optional power product: 10-55Hz (See the manual of optional power product for details).
