Description
The BX-M2510 is a high-performance embedded computer that operates without a fan. It is equipped with a 9th Gen Intel® CPU processor and offers low power consumption over a wide voltage and temperature ranges for flexibility across a variety of usage and environments. You can choose the Xeon E-2278GEL, Core i5 9500TE, Core i3 9100TE, or Celeron G4900T processor depending on your performance needs.
The BX-M2510 is a high-performance embedded computer that operates without a fan. It is equipped with a 9th Gen Intel® CPU processor and offers low power consumption over a wide voltage and temperature ranges for flexibility across a variety of usage and environments. You can choose the Xeon E-2278GEL, Core i5 9500TE, Core i3 9100TE, or Celeron G4900T processor depending on your performance needs.

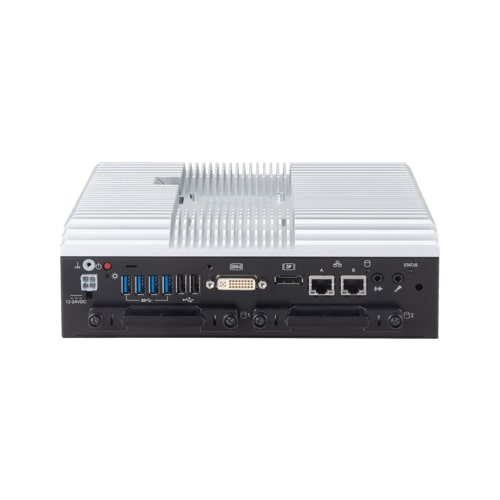

The BX-M2510 comes with a wide variety of interfaces including 2x GbE LAN, 4x USB 3.2 Gen2, 2x USB 2.0, 1x DisplayPort, 1x DVI-D, 1x VGA, 4x RS-232C, 6x GPIO, and a 2.5-inch SATA hard disk bay. This makes it perfect for displaying images, including kiosks and digital signage. The computer features an embedded-type CPU that enables long-life production deployments with a stable supply. Additionally, the Contec-customized BIOS allows system customizations at the BIOS level.
Contec's value add features, including "Power Failure Protection," "Contec Fast Boot," "Secure Boot USB Key," "Disk Copy," and "Self-diagnosis," are all available on this model.
Usage Examples:
Image processing terminal.
Robot terminal.
Automated gate built-in terminal.
Terminal for facility information.
Wide range of Intel 9th Gen CPU options to support your performance needs.
BX-M2510 CPU options range from a high-performance Xeon down to a power-saving Celeron. All CPUs are sourced from Intel's Embedded CPU product roadmap meaning long-life supply for this embedded PC to meet the needs of your long-life deployments.
Flexible and reliable operation over input voltage and operational temperature ranges.
The BX-M2510 achieves stable operation over a wide temperature range of -10 to +60C with limited airflow. An optional fan SKU can extend operation to a range of -10 to +70C. All SKUs support an input voltage range of 12-24VDC.
Protect your data during a power failure.
This unit is equipped with the "Power failure protection system" function that protects data and prohibits writing to storage in the event of power failure. Along with the lockdown (disk writing suppression) function of Windows IoT Enterprise, power can be safely turned off without the shutdown process. Moreover, file system damage or data damage caused by sudden power failure is avoided with this feature.
High-security design contributes to a highly reliable system.
The latest security functions such as TPM2.0 and Secure Boot, as well as Contec's value-add functions such as USB Boot Protect, are provided. This product is designed with the high security required for industrial applications in mind. And several models come equipped with Intel vPro technology to enable secure and remote management of your computer deployment.
Contec-customized BIOS tools provide added benefits.
"Contec Fast Boot" can achieve a Windows startup in 10 seconds. The "Disk Copy" function provides secure disk backup at the BIOS level and supports a backup in file format or compressed file format. Contec also can provide a “BIOS update tool” for updating your default BIOS settings
