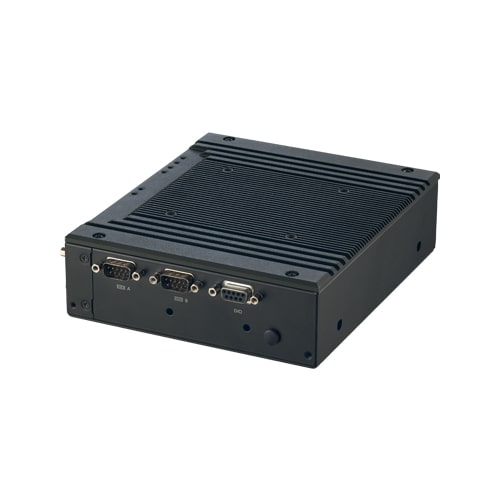

The BX-M310 is a fanless computer specifically designed for embedded applications, featuring an Intel Atom x6413E processor. Its compact design and wide input voltage range make it suitable for use in a wide range of settings. This computer comes equipped with a multitude of interfaces including a DisplayPort, 1x VGA, 2x USB 3.2 Gen1 type A ports, 4x USB 2.0 ports, 2x 2.5GbE, 1x RS-232/422/485, 3x RS-232, and 6x GPIO. Additionally, it has a built-in M.2 key E socket that can be utilized to create wireless LAN and Bluetooth connections.
Thanks to its front panel CFast Type I slot and 2.5" storage device extraction design, the BX-M310 provides convenient product maintenance and upgrades. The embedded CPU is designed to provide greater reliability under stringent usage conditions. The BX-M310 series has high computing power, display capability, and flexible expansion slots making it ideal for factory automation, digital signage, self-service kiosks, and medical applications.
Usage Examples:
Factory automation
Semiconductor / LCD manufacturing
Digital signage
Informational touch kiosk
Embedded Intel Atom® x6413E processor
This product features an x6413E CPU with lower power consumption and high computing and graphics performance. The embedded CPU enables a more stable supply.
Fanless design reduces maintenance work
The product is fanless, ensuring no moving parts and simplifying maintenance, relieving concerns about dust or foreign matter getting into the product. Moreover, minimized use of moving parts greatly reduces maintenance work.
Wide range DC input and flexible power management
12-24 VDC (± 10%); ATX /AT Mode by jumper setting; and supported power-on by Ring / Wake-on-LAN function (setting from BIOS).
Rich set of interfaces to support all your peripherals
Support for modern peripherals via DisplayPort, VGA port, 4x Serial ports, 2x USB 3.2, 4 x USB 2.0, and M.2 key E (PCIe x2) enables fast data transfer for a convenient connection to external devices.
Ample communications options
Two 2.5Gb Ethernet ports and M.2 support for add-on Wi-Fi modules provide faster and more reliable network connectivity.
