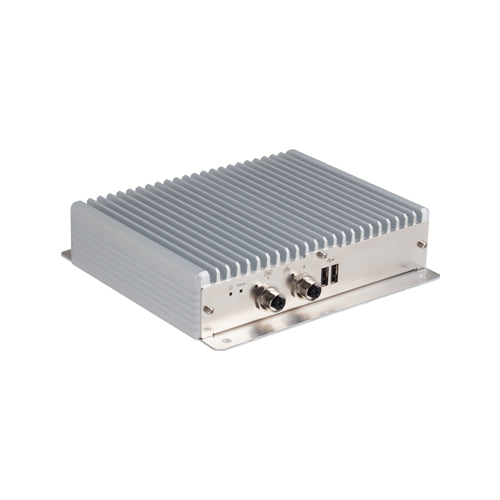

BX-R100 - Fanless Embedded PC, Conforms to EN 50155, Train and Vehicle Mountable
BX-R100 - Fanless Embedded PC, Conforms to EN 50155, Train and Vehicle Mountable
BX-R100 - Fanless Embedded PC, Conforms to EN 50155, Train and Vehicle Mountable
BX-R100 - Fanless Embedded PC, Conforms to EN 50155, Train and Vehicle Mountable
  • SKU: BX-R100-W10M01M03
  • Availability: In Stock Many in stock Out of stock BUILT TO ORDER - SHIPS IN 2 - 6 WEEKS

BX-R100 - Fanless Embedded PC, Conforms to EN 50155, Train and Vehicle Mountable

$1,594.00
Shipping calculated at checkout.

    This fan-less computer for embedded applications conforms to EN50155 (Class TX) standard. With an Intel Atom processor E3845 of Quad-Core CPU, it can perform stable, high-speed processing of four applications at the same time. The computer contributes to reducing operating costs and to promoting energy efficiency by its small footprint and power-saving features. This PC includes an embedded CPU. In addition, the use of readily available parts ensures ease of the use. Finally, Contec customized BIOS allows support to be provided at the BIOS level.

    Railway standard applicable

    This computer complies with several standards required for the railway applications. EN55032, EN61000-3-2, EN61000-3-3, EN55024, EN50155 *, EN45545-2, EN60068-2-1, and EN61373 (* Type test conducted)

    Fan-less design that reduces maintenance and inspection work

    This PC's spindle-less design eliminates CPU fan, and eliminates the concern about dust or foreign matter ingress. Parts that degrade over time is minimized to facilitate maintenance.

    PoE(IEEE802.3at) power reception and adaptable to a wide power rangeof 10.8 - 33.6VDC

    The computer is adaptable to PoE(IEEE802.3at) power reception and capable of dealing with a wide power range between 10.8 and 33.6VDC in the differing environment. Also, both power supplies can be switched seamlessly (such as turning on both power supplies and disconnecting one of them. You an use DC power during PoE operation and disconnect PoE.

    M12 connecter interface

    M12 connector is adopted for LAN(1000BASE-T/100BASE-TX/10BASE-T) and for DC power.
    For LAN : M12 8pin X-Coded connector x 2
    For DC : M12 4pin A-Coded connector x 1

    Excellent environmental capabilities

    Capable of operating in the various ambient temperature environment of with vibration and shock resistance.
    -40 - +70°C (When using 1000BASE-T : -40 - +65°C) : during forced air cooling 0.5m/s
    -40 - +60°C (When using 1000BASE-T : -40 - +55°C) : during natural air cooling
    Vibration resistance 5G, Shock resistance 100G

    Reduces operating costs and boosts energy efficiency

    By featuring the low-power platform of Intel® AtomTM Processor E3845, this computer achieves lower power consumption while still ensuring optimum performance.

    Specifications

    Item Description
    CPU Intel® Atom™ Processor E3845(1.91GHz)
    BIOS BIOS (mfd. by AMI)
    Memory 4GB. 204-pin SO-DIMM x 1, PC3-10600(DDR3L 1333) ECC
    Graphics Controller Intel® HD Graphics (CPU integrated)
    System resolution DisplayPort 640 x 480, 800 x 600, 1,024 x 768, 1,152 x 864, 1,280 x 600, 1,280 x 720, 1,280 x 800, 1,280 x 960, 1,280 x 1,024, 1,360 x 768, 1,366 x 768, 1,400 x 1,050, 1,440 x 900, 1,600 x 900, 1,600 x 1,050, 1,920 x 1,080, 1,920 x 1,200 (16,770,000 colors)
    mSATA (integrated) *1 mSATA slot x 1, 32GB (MLC) x 1 Pre-installed
    LAN Intel I210IT controller
    1000BASE-T/100BASE-TX/10BASE-T x 2 ports
    USB USB 2.0-compliant x 2 ports
    Serial RS-232C 1 port,
    Baud rate: 50 - 115,200bps
    Hardware monitoring Monitoring CPU temperature, board temperature, power voltage
    Watchdog timer (WDT) Software programmable, 255 level (1sec - 255sec)
    Time up allows reset shutdown.
    Real Time Clock Lithium backup battery life: 10 years or longer
    The real-time clock is accurate within ±3 minutes (at 25°C) per month (CPU built-in RTC).
    Power Management Power management setup via BIOS
    Power On by Ring/Wake On LAN
    Supports ACPI Power management
    Interface Display Display Port x 1
    SD SD Card Slot x 1
    LAN 2-port (M12 connector, X-coded)
    USB USB2.0 compliant 2port (TYPE-A connector)
    RS-232C 1-port (9pin D-SUB connector [male])
    Power supply PoE (1-port 25.5W input, M12 8pin X-Coded connector x 1)
    (M12 connector, A-Coded)
    DC IN (1-port M12 4pin A-Coded connector x 1)
    Rated input voltage: 12 - 24VDC *2
    Range of input voltage: 10.8 - 33.6VDC
    Power consumption: 12V 1.4A, 24V 0.8A
    External device power supply capacity USB2.0 I/F: +5V 1.0A (500mA x 2 per port)
    Physical dimensions (mm) 200(W) x 185(D) x 46(H)
    Weight 1.7kg (approx.)
    *1 The capacity of storage device in the OS pre-installed type is a value when 1GB is calculated by 1 billion bytes. The capacity that can be recognized from OS might be displayed less than the actual value.
    *2 Use a power cable shorter than 3m.

    Installation Environment Requirements

    Model Description
    Operating temperature *3 -40 - +70°C (With 1000BASE-T: -40 - +65°C), airflow 0.5m/s
    -40 - +60°C (With 1000BASE-T: -40 - +55°C), no airflow
    Storage temperature -40 - +80°C
    Operating Humidity 10 - 90%RH(No condensation)
    Non-operating ambient humidity 10 - 90%RH(No condensation)
    Floating dust particles Not to be excessive
    Corrosive gases None
    Line-Noise resistance Line-noise AC Line /±2kV (IEC61000-4-4 Level 3, EN61000-4-4 Level 3) *4
    Signal Line /±1kV (IEC61000-4-4 Level 4, EN61000-4-4 Level 3)
    Static electricity resistance Touch /±4kV (IEC61000-4-2 Level 2, EN61000-4-2 Level 2)
    Air /±8kV (IEC61000-4-2 Level 3, EN61000-4-2 Level 3)
    Vibration resistance Sweep resistance 10 - 57Hz /semi-amplitude vibration 0.375mm, 57 - 500Hz/5.0G
    60minutes each in X, Y, and Z directions (JIS C60068-2-27-compliant,
    IEC60068-2-27-compliant)
    Shock resistance 100G half-sine shock for 6ms in X, Y, and Z directions
    (JIS C 60068-2-27-compliant, IEC 60068-2-27-compliant)
    Grounding Class D grounding, SG-FG / continuity
    Standard VCCI Class A, FCC Class B,
    CE Marking (EMC Directive Class A, RoHS Directive),
    EN45545-2, EN50155 (Class TX) *5 *6
    *3 Vary depending on the orientation.
    *4 When AC adapter “ACAP19-01” is used.
    *5 Use a cable less than 3 meters to connect to USB 2.0 I / F.
    *6 The noise resistance test, withstand voltage test, and isolation resistance test are conducted by connecting the PoE power unit "POW-CB60AT" (optional item). This standard is applicable for the BX-R100 main body only. Use a power supply that conforms to EN50155.
