  • SKU: BX-T1000-W10M02M08
  • Availability: In Stock Many in stock Out of stock BUILT TO ORDER - SHIPS IN 2 - 6 WEEKS

BX-T1000 Fanless Embedded PC w/ Intel Core i7 7600U

$2,622.03
Shipping calculated at checkout.

    This fanless and high-performance embedded computer with seventh-generation Intel® Core i7 processor was designed for industrial applications. Achieving great performances and power savings, it also features rich interfaces with natural centilation (FAN-less).


    This computer has extension interfaces such as dual-LAN, USB3.0, Displayport, DVI-D, and RS-232C. It employs 2.5-inch SATA disk slots to display images including digital signage.


    An Embedded CPU was included in the computer. The availability of parts ensures a long-life cycle. In addition, the use of Contec-customized BIOS allows support to be provided at the BIOS level.



      Seventh-generation Core i7 processor included

      This processor provides high computing and graphic performance.  The Embedded CPU offers a stable supply.


      Fan-less design reduces maintenance work

      This computer's fanless design eliminates the heat dissipating slit and CPU fan and features a CFast card for storage. There is no need to worry about dust or foreign object ingress, or about spare parts that degrade over time.


      A wide range of power supplies (10.8 - 31.2VDC) supported

      As the product supports a wide range of power (10.8 - 31.2VDC), it can be used in a variety of power environments. The separately available AC adapter adds support for 100 - 240VAC power.


      Major peripheral types are supported with rich interfaces

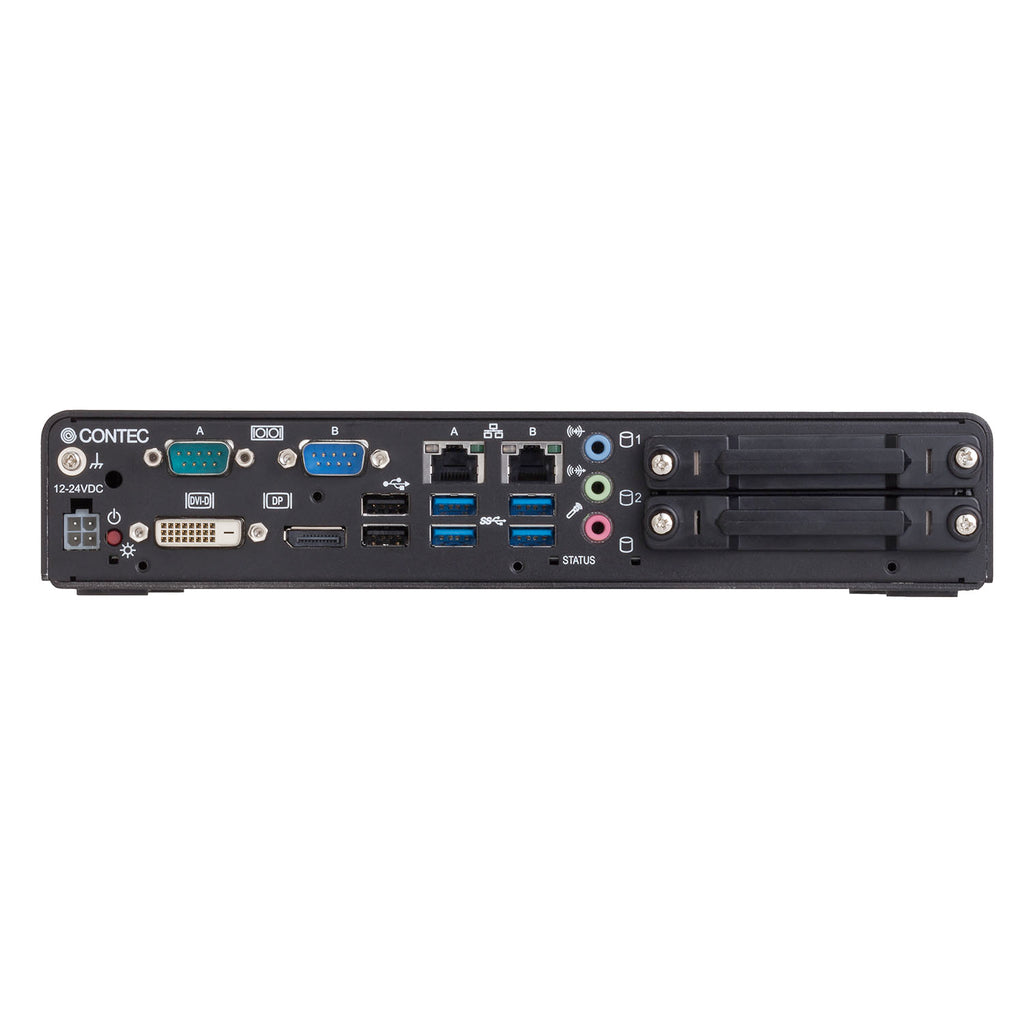

      The computer has a variety of extended interfaces such as DVI-D x 1, Displayport×1, 1000BASE-T x 2, USB3.0 x 4, USB2.0 x 2, and serial (RS-232C) x 2. It has two slot-in type for 2.5-inch SATA disk slots, providing the ability to separate data from the operating system, as well as the convenience of being able to use one slot for system startup and the other for maintenance, or for taking home system logs or collected data.


      Falling-off prevention tools and fixing clamps provided to avoid problems caused by a disconnected cable

      This computer prevents possible problems thanks to USB removal prevention fitting and cable clamp for connectors with no locking mechanism, such as USB cable.


      Safety design required for embedded applications

      It is possible to use the WF*1 function of OS For Windows Embedded Standard or Windows 10 IoT Enterprise LTSB 2016 installed in our computers. This is designed for the safety required for embedded applications, for example, for prohibiting unwanted writing to the CFast card with WF function. As a result, you can eliminate the concern about the writing limits to the CFast card and prevent an unintentional system alteration.

      *1 EWF (Enhanced Write Filter) is a function of Windows Embedded Standard. UWF (Unified Write Filter) is a function of Windows 10 IoT Enterprise LTSB 2016. They protect the disk from being actually written by redirecting the writing to RAM.

      Model Online Model Additional Configuration Options
      Please contact us to request a quote
      Procesor Intel Core i5 7300U 2.60GHz Intel Core i7 Processor 7600U 2.80GHz, Intel Celeron 3965U 2.20GHz
      Display DVI-D x 1 (25pin DVI-D connector), DisplayPort x 1
      Memory 8 GB PC4-17000 (DDR4-2133)
      Ethernet 2 port (RJ-45 connector)
      Serial RS-232C (general-purpose): 2port (SERIAL PORTA, B), 9pin D-SUB connector (male). Baud rate: 50 - 115,200bps
      USB USB3.0 compliant 4port (TYPE-A connector), USB2.0 compliant 2port (TYPE-A connector)
      Storage 2.5 inch SSD (MLC) 256GB 2.5 inch HDD 100GB
      Dimensions 11.02 x 14.76 x 7.63 in
      Weigth 6.66lb
      Operating Temperature 0 - 45°C
      Storage Temperature -10 - 60°C
      Humidity 10 - 90% RH (No condensation)
      Operating System Windows 10 IoT Enterprise LTSB 2016 64bit Windows 10 IoT Enterprise 2019 LTSC 64bit
      Line Noise Resistance AC line / ±2kV *3 Signal line / ±1kV (IEC61000-4-4 Level 3, EN61000-4-4 Level 3)
      Static Electricity Resistance Contact discharge / ±4kV (IEC61000-4-2 Level 2, EN61000-4-2 Level 2) Atmospheric discharge / ±8kV (IEC61000-4-2 Level 3, EN61000-4-2 Level 3)
      Vibration Resistance When the HDD is on: 10 - 50Hz/ 0.5G 25 min. each in x, y, and z directions (JIS C60068-2-6-compliant, IEC60068-2-6-compliant. When the HDD is off: 10 - 57Hz/semi-amplitude 0.15mm 57 - 150Hz/2.0G 40 min. each in x, y, and z directions (JIS C60068-2-6-compliant, IEC60068-2-6-compliant)
      Impact Resistance 10G, half-sine shock for 11 ms in x, y, and z directions (JIS C 60068-2-27-compliant, IEC 60068-2-27-compliant)
      Grounding Class D grounding, SG-FG / continuity
      Regulatory VCCI Class A, FCC Class A, CE Marking (EMC Directive Class A, RoHS Directive)
