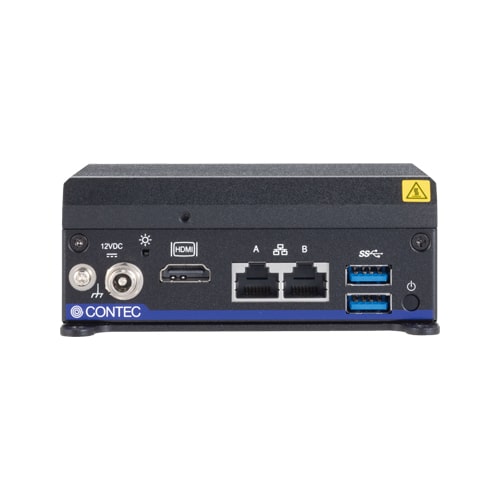

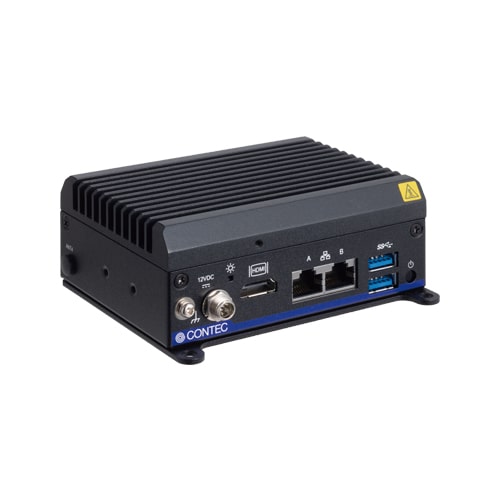

The BX-U310 is a fanless computer designed for embedded applications and features an Intel Atom x6413E (1.5GHz) quad-core processor. It offers solid performance in a compact design and can operate over a wide temperature range. In addition to HDMI, it provides a range of interfaces including 2x USB 3.2 Gen2 and dual GbE LAN. The embedded CPU enables a long-life supply and Contec's BIOS tools allow for BIOS-level settings and support.
-
Palm-sized ultra-compact PC
- At just 110 (W) × 80 (D) × 45 (H) mm, this ultra-compact PC is small enough to fit in the palm of your hand. Minimize your required space, without compromising your performance.
-
Operation over a wide temperature range
- The BX-U310 achieves stable operation over a wide temperature range of -10 to 60°C.
-
Protect your data with Contec's "System Power Failure Protection"
- The BX-U310 features a system power failure protection function that protects data and prohibits writing to M.2 storage in the event of power failure. Along with the lockdown (disk writing suppression) function of Windows IoT Enterprise, power can be safely turned off without a shutdown process. Moreover, file system damage or data damage caused by a sudden power failure can be avoided.
-
Key security features contribute to a highly reliable system
- Several security functions such as TPM2.0 and Intel Secure Boot, as well as Contec's USB Boot Protect are provided. This product is designed with the high security required for industrial applications.
-
Contec-customized BIOS tools provide additional benefits
- Achieve a 10-second boot time with Contec Fast Boot. The Disk Copy function provides a secure disk backup at the BIOS level. Contec also provides a BIOS Update Tool for updating defualt BIOS settings.
