2 - 3 weeks ARO

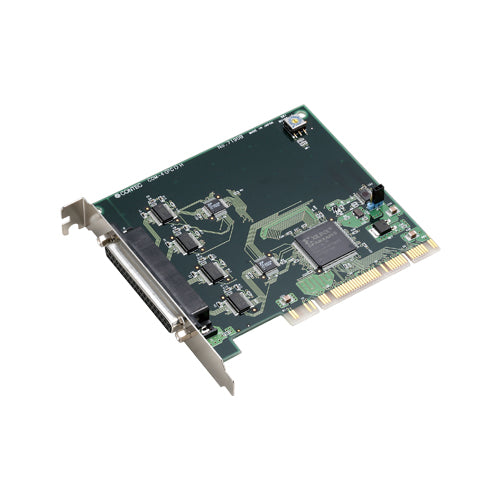

The COM-4(PCI)H is a PCI bus interface card that expands the RS-232C serial communication port to four channels. UART162850 which has the FIFO buffer of 128 bytes of transmission/reception in each channel is carried. It can be used as a Windows and standard COM port for Linux by the setup by the attached standard COM driver. A program is also possible at a Win32 API communication function or MSComm. * 9 pin / 25 pin D-SUB connector distribution cable option.
- Maximum communication speed is 921,600bps.
- The baud rate can be set independently for each channel, by software.
- Each channel is equipped with a separate 128-byte FIFO buffer to transmit and receive.
Bus Specification: PCI
Size: Short Size
Used Connector: D-SUB37-pin (Female)
Number of Channels: 4x RS-232C (ASYNC)
Transmission Speed: 2 - 921,600bps
Transmission Method: RS-232C (Asynchronous)
Supported Operating Systems
Windows 10 (64-bit); Windows 10 (32-bit); Windows 8.1 (64-bit); Windows 8.1 (32-bit); Windows 7 (64-bit); Windows 7 (32-bit); Windows Vista (64-bit); Windows Vista (32-bit); Windows XP (64-bit); Windows XP (32-bit); Windows 2000 (32-bit); Windows Server 2019; Windows Server 2016 ; Windows Server 2012 R2; Windows Server 2008 (64-bit); Windows Server 2008 (32-bit); Windows Server 2003 (64-bit); Windows Server 2003 (32-bit); Linux
