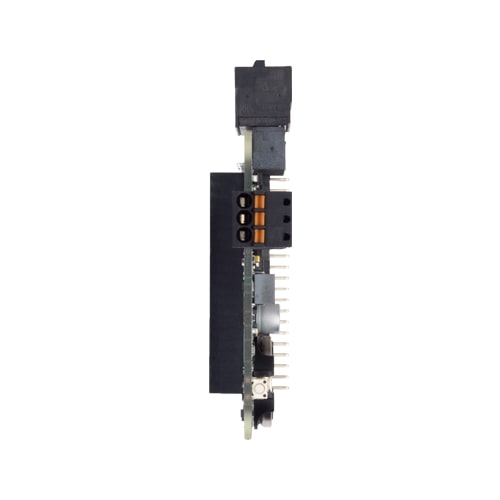

Unlock your industrial potential with Contec's CPI-RAS card, designed to enhance the reliability, availability, and serviceability of Raspberry Pi devices. Contec's CPI series allows you to easily stack up to eight HAT (Hardware Attached on Top) size expansion cards, bringing industrial-grade availability and maintainability to your Raspberry Pi devices.
- RAS functionality for industrial Raspberry Pi usages
- The 8-28 VDC input voltage range makes it possible to use Raspberry Pi devices in a wide range of industrial environments. The CPI-RAS also improves the reliability of Raspberry Pi devices by supplying clean power via a high-output, high-efficiency power supply with noise filter.
-
Push-type terminal block for easy wiring
- The CPI Series includes a push-type terminal block for convenient, simple connection and disconnection of wired HATs without needing tools or crimping terminals.
-
Power switch functionality
- The power switch function available in most commercial PCs can be added to your Raspberry Pi with the CPI-RAS. It provides a forced power-off function by doing a long press on the power button. The operation can be performed from a push switch or via a digital input.
- Real Time Clock (RTC) with temperature compensation
- The CPI-RAS internal temperature compensation feature improves the accuracy of time tracking across a broad temperature range of -20 to 60C.
