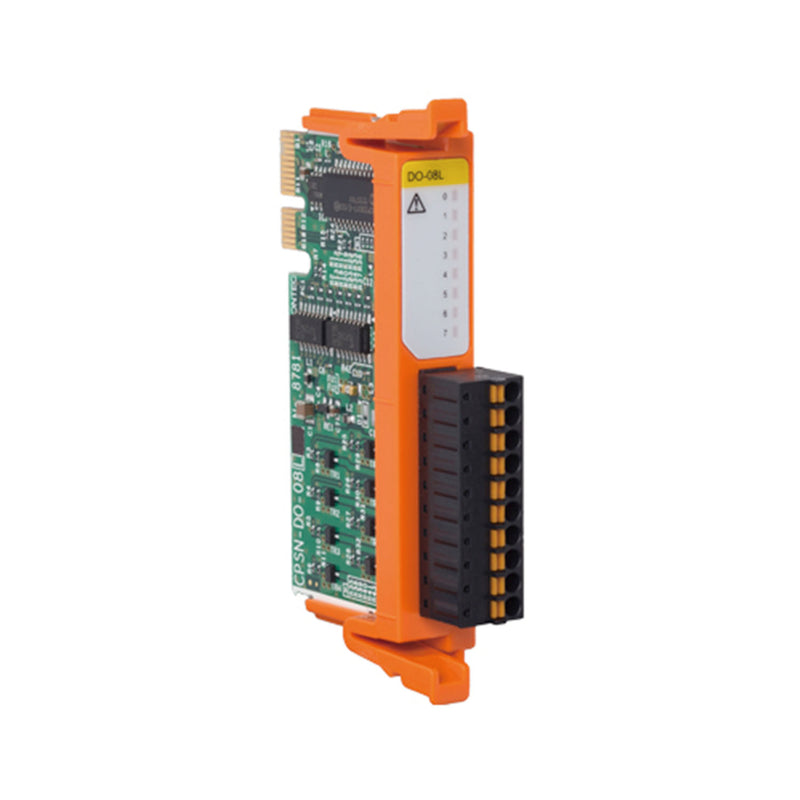

This expansion module adds a digital output interface to the CPU unit of the CONPROSYS nano series. CPSN-DO-08 has 8 opto-coupler isolated Output channels (current sink output) whose response speed is 200μsec or less. This module can be used with an external circuit power supply of 12 to 24 V.
Opto-coupler isolated output
This module has 8 opto-coupler isolated Output channels (current sink output) whose response speed is 200μsec or less.
Output circuits include zener diodes for surge voltage protection
Zener diodes are connected to the output circuits to protect against surge voltages. The rated output is 35VDC, 500mA maximum per channel.
Easy installation and removal
This product can be installed and removed from the CPU unit without any tools.
Adaptable to a wide operating temperature range between -20 and +60°C
The module can operate with temperatures between -20 and + 60°C. It can be installed in various environments.
Equipped with a LED for operation checks
The module has a LED for operation checks, which helps you visually confirm the communication status of each interface.
No electrolytic capacitor
Without an electrolytic capacitor, which has a limited life, the module offers an extended life cycle.
