  • SKU: CPSN-MCB271-1-041
  • Availability: In Stock Many in stock Out of stock BUILT TO ORDER - SHIPS IN 2 - 6 WEEKS

CPSN-MCB271-1-041 CONPROSYS Nano Remote I/O - Communication Coupler

$154.09
Shipping calculated at checkout.

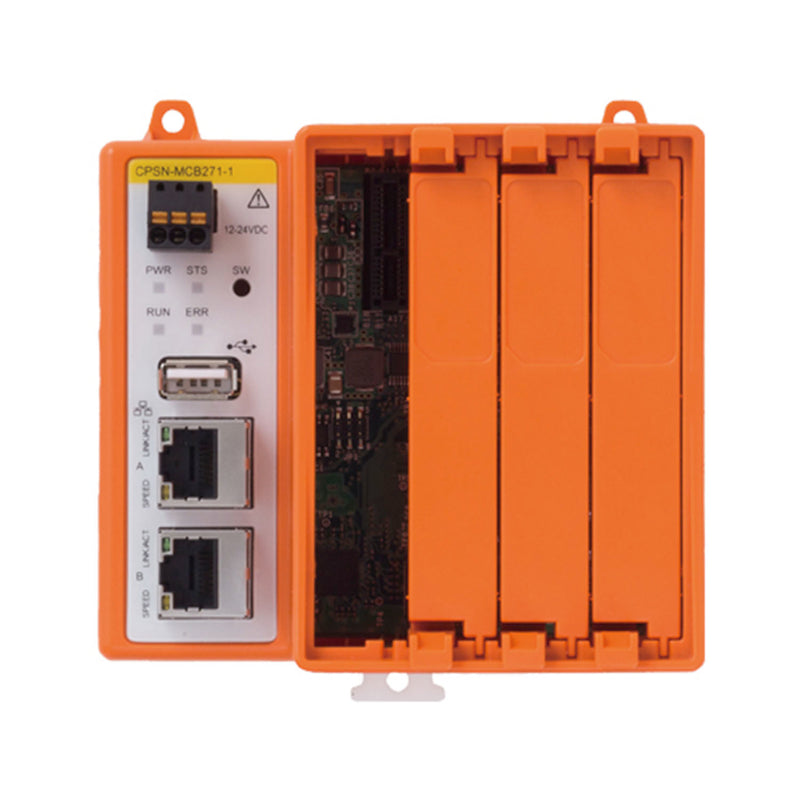

    This remote I/O model CPU unit has LAN interfaces and four expansion slots. If necessary, you can freely combine this product with CONPROSYS nano series I/O modules. In addition, this unit can be controlled from a PC running Windows or Linux and supports Modbus TCP Slave.

      I/O module expansion or removal

      With this unit, you can freely add or remove I/O modules to match the necessary requirements and leverage the varied collection of CONPROSYS nano series I/O modules.


      Compact design, easy installations

      This unit compact size (110 (W) × 74.8 (D) × 95 (H) mm) allows a flexible installation.


      Expansion modules can be installed and removed without any tools

      Adaptable to a wide range of temperature between -20 and +60°C: The unit can operate with a wide temperature range between -20 and + 60°C. It can be installed in various environments.


      2 LAN ports containing a switch function

      The unit offers 2 LAN ports which feature a switch function. These ports also allow to configure a daisy-chain network.


      Running with Windows driver software

      The unit offers UDP/IP-based original protocol (F&eIT) and applications can be created with Windows driver software in the Win32 API function format (DLL). On top of that, you can check if software and hardware are operating properly with the diagnostic software.


      Support of virtual COM drive

      Virtual COM driver software enables you to operate the serial I/O module port in the same way as a PC COM port (standard COM) when the serial I/O module has been inserted into the I/O slot. Applications can be created with the OS standard Win32 API communication function.

      General

      Model Online Model
      CPU ARM Cortex-M3 180MHz
      Memory On Board 16MB SDRAM
      ROM On-Board 4MB NOR Flash for OS
      FeRAM On-Board 32kB
      LED PWR(Green) / RUN(Green) / STS(Green) / ERR(Red)
      Switch Push switch
      Physical dimensions (mm) 110(W) x 74.8(D) x 95(H)mm (not include projection)
      Weight 250g

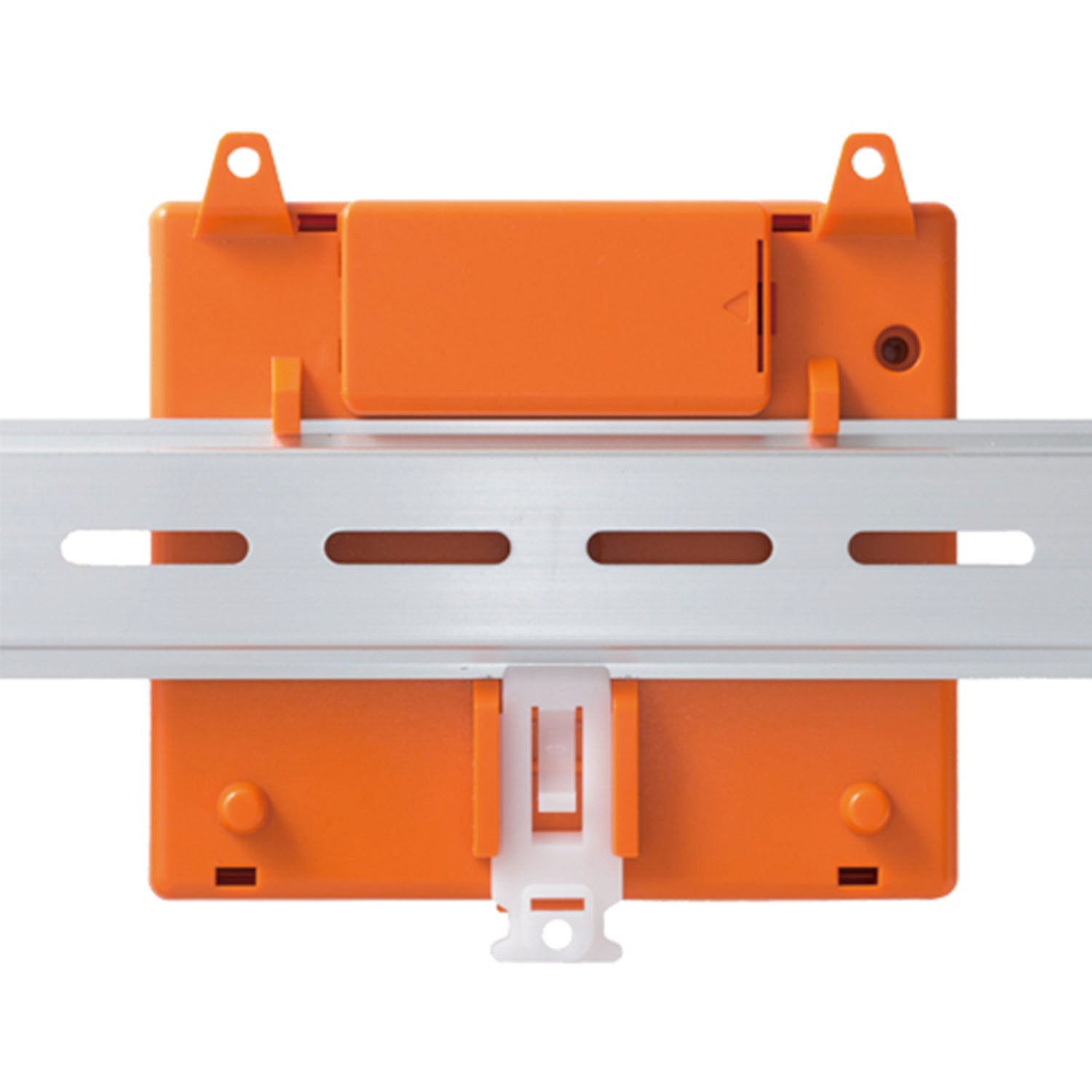

      Installation method Quick installation on a 35 mm DIN rail
      Vertical installation with screws *4
      Operating ambient temperature Vertical Installation -20 - +60°C, Vertical installation with an angle of 90° to the right/left, Horizontal installation: -20 - +55°C
      Operating ambient humidity 10 - 90%RH (No condensation)
      Non-operating ambient temperature -20 - +60°C
      Non-operating ambient humidity 10 - 90%RH (No condensation)
      Floating dust particles Not to be excessive
      Corrosive gases None
      Line-noise resistance AC Line/±2kV *5
      Signal Line /±1kV(IEC61000-4-4 Level 3, EN61000-4-4 Level 3)
      Static electricity resistance Touch /±4kV (IEC61000-4-2 Level 2, EN61000-4-2 Level 2), Air /±8kV (IEC61000-4-2 Level 3, EN61000-4-2 Level 3)
      Vibration resistance, Sweep resistance 10 - 57Hz *6 /semi-amplitude vibration 0.15mm, 57 - 150Hz/2.0G, 40minutes each in X, Y, and Z directions (JIS C60068-2-6-compliant, IEC60068-2-6-compliant)
      Shock resistance 15G half-sine shock for 11ms in X, Y, and Z directions, (JIS C 60068-2-27 -compliant, IEC 60068-2-27 -compliant)
      Grounding Class D grounding (previous class 3 grounding), SG-FG/ non-conduction
      Standard VCCI Class A, FCC Class A, CE Marking (EMC Directive Class A, RoHS Directive), UL

      LAN

      Model Online Model
      Transmission standard 10BASE-T/100BASE-TX
      The number of channels 2 (which contains a swith function ) *1
      Connector RJ-45 Connector
      LED Speed (Orange), Link / Act (Green)

      USB

      Model Online Model
      Transmission standard USB2.0 standard follow
      The number of channels 1
      Connector TYPE-A

      microSD Card Slot

      Model Online Model
      Standard SD standard follow
      Connector microSD memory card slot

      Expansion Slot

      Model Online Model
      Number of slots 4
      Maximum power supply 12 - 24V 200mA, 5V 250mA, 3.3V 200mA (per slot)
      Number of insertions/removals 50 times (min)

      RTC

      Model Online Model
      Monthly error ±15 seconds or less (25°C)
      Backup time Not equipped with the date retention battery for backup

      Power Supply *2

      Model Online Model
      Rated input voltage 12 - 24VDC
      Input voltage range 10.8 - 30VDC
      Power consumption CPU Unit alone *3, 24V 0.08A (Typ.), 0.1A (Max.), 12V 0.15A (Typ.), 0.2A (Max.), With I/O module and USB, 24V 1.5A (Max.), 12V 2.0A (Max.)
      Connector 2 pieces 3.5mm pitch 3-pin Terminal (V+, V-, FG)
      Applicable wire AWG24 - 16
      Surge protection element V+ - V-, V- - FG Interactive TVS Diode, Stand off voltage : ±30V, Peak pulse power : 400W (1ms)

      Notes:

      *1 The CPSN-MCB271-1-041 model contains a switch function and can configure a network like daisy-chain.

      connection between LAN A port and LAN B port.

      *2 Use power cable within 3meters.

      *3 With no USB load and no expansion slot load.

      *4 Commercially available screws are required.

      *5 When an optional power product is used.

      *6 When an optional power product is used : 10 - 55Hz (See the manual of optional power product for details).
