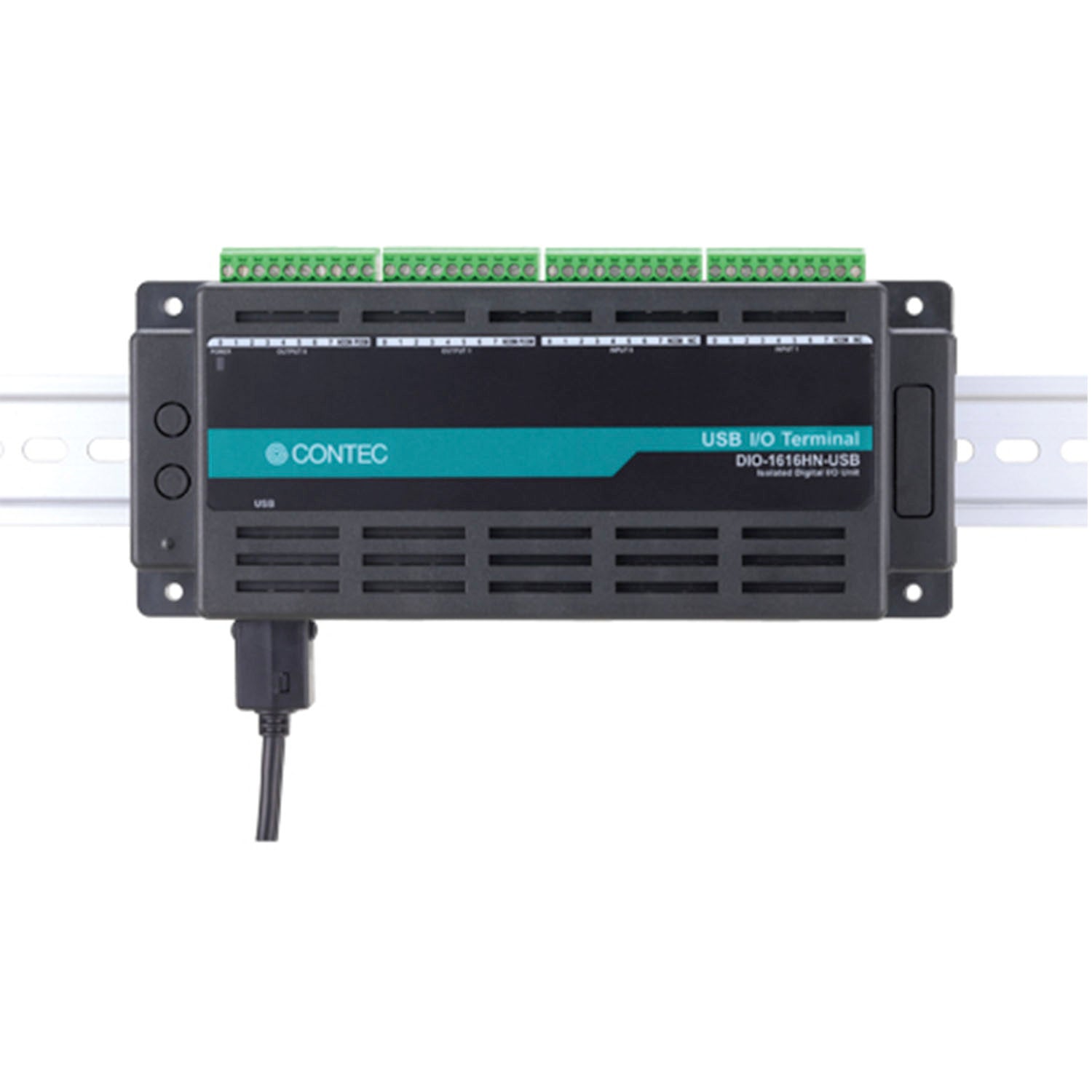

    This USB2.0-compliant digital I/O unit extends the digital signal input and output of the PC’s USB port. Its compact design (188.0(W) x 78.0(D) x 30.5(H)) makes it easy to install the product within a panel or device using DIN rail mounting jigs, or on the floor or wall. This unit is compatible with digital input and output signals at 5 - 50VDC and features 16  opto-coupler isolated input channels (compatible with current sink output) and 16 opto-coupler isolated open-collector output channels (compatible with current sink type), equipped with output transistor protection circuit (surge voltage protection and over current protection). Windows driver library is supplied. You can use the unit as a data recording device for LabVIEW, with dedicated libraries.

    Screw fastening, magnet, DIN rail installations possible

    Installation on the floor / wall /ceiling is possible by screw fastening, magnet, rubber feet, etc. In addition, a DIN rail mounting mechanism is equipped as standard with the product, making it easy to install the product within a panel or a device.

    Compact design allows flexible installation

    Compact design (188.0(W) x 78.0(D) x 30.5(H)) does not require special installation requirements.

    Easy-to-wire terminal connector

    The terminal connector (with screws) allows easy wiring.

    Optocoupler isolated input (compatible with current sink output)

    This unit has 16 channels of optocoupler isolated inputs, compatible with 5 - 50 VDC current sink output whose response speed is 200µsec. 16 channels share one common. As the power to run the opto-couplers is supplied internally, no external power supply is required.

    Optocoupler isolated open-collector outputs (compatible with current sink type)

    This unit has 16 opto-coupler isolated open-collector output channels (current sink type) whose response speed is 200µsec, supporting driver voltages of 5- 50 VDC for I/O. The output rating is max.100mA per channel. Common terminal provided per 8 channels, capable of supporting a different external power supply.

    Opto-coupler bus isolation

    As the USB I/F on PC is isolated from the input and output interfaces by opto-couplers, this unit has excellent noise performance.

    Specification

    Item   Specification
    Input Number of input signal channels 16 channels (1 common)
    Input format Opto-isolated input (Compatible with current sink output) (Negative logic *1)
    Input resistance 560Ω
    Input ON current 1.15mA or more
    Input OFF current 0.16mA or less
    Response time Within 200µsec *2
    Output Number of output signal channels 16 channels (8 channels share 1 common)
    Output format Opto-isolated open collector output (Compatible with current sink)(Negative logic *1)
    Output rating Output voltage 60VDC (Max.)
    Output current 100mA (par channel) (Max.)
    Residual voltage with output ON 0.5V or less (Output current ≤ 50mA), 1.0V or less (Outputcurrent ≤ 100mA)
    Surge protector Zener diode RD68FM(NEC) or the equivalence for it
    Response time Within 200µsec *2
    USB section Bus specification USB Specification 2.0/1.1standard
    USB transfer rate 12Mbps (Full-speed), 480Mbps (High-speed) *3
    Power supply Bus power
    Common section Number of terminals used at the same time 127 terminals (Max.) *4
    Dielectric strength 500Vrms
    External circuit power supply *5 5 – 50VDC (±10%)
    Current consumption (Max.) 5VDC 300mA
    Operating conditions*6 0 - 50ºC, 10 - 90%RH (No condensation)
    Allowable distance of signal extension Approx. 50m (depending on wiring environment)
    Physical dimensions (mm) 188.0(W)×78.0(D)×30.5(H) (No protrusions)
    Weight 300g (Not including the USB cable, attachment)
    Connector 10 pin (screw-terminal) plug header x4
    Attached cable USB cable 1.8m
    Notes: *1 Data “0” and “1” correspond to the High and Low levels, respectively.
    *2 The Optocoupler's response time comes.
    *3 This depends on the PC environment used (OS and USB host controller).
    *4 As a USB hub is also counted as one device, you cannot just connect 127 USB unit.
    *5 External circuit power supply is required.
    *6 To suppress the heating, ensure that there are spaces for ventilation (about 5cm) around this product.
