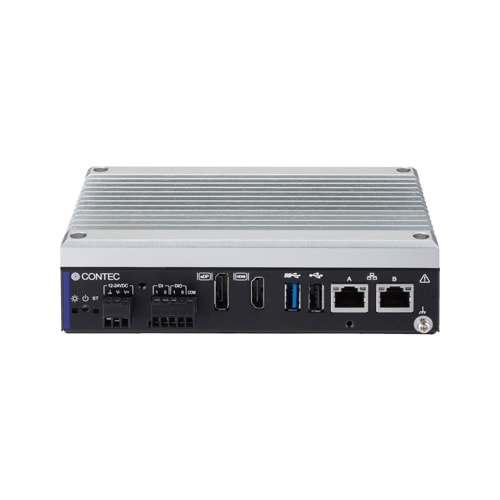

This product is an industrial computer designed for AI inference processing, equipped with the NVIDIA® Jetson Xavier NX™ module. It comes with features such as Dual Gigabit LAN, HDMI, embedded DisplayPort(eDP), USB×2, general-purpose I/O, and RTC. With its flexibility in installation and resistance to environmental factors, it assures reliable practical applications.
It comes pre-installed with Ubuntu, similar to the developer kit, and offers the JetPack SDK to run applications developed using the kit. For dustproof models, sheet metal (pre-attached) and connector caps are included to prevent dust and dirt from entering the product vents. Expansion slot models feature a low-profile PCI Express slot x1, enabling expanded functionality through CONTEC’s range of low-profile PCI Express cards.
Usage Examples / Ideal for:
- Surveillance
- Traffic Count
- Predictive Maintenance
- Visual Inspection System
Edge AI accelerator equipped with NVIDIA® Jetson Xavier NX™
Equipped with the NVIDIA® Jetson Xavier NX™, the DX-U1200 series can be used in fields requiring on-site AI inference processing, such as image inspection and predictive maintenance.
Long-term supply and maintenance
Long-term product supply is provided, as well as repair and maintenance services. This can significantly reduce life cycle costs, including verification and modification man-hours that are needed with every model change.
Highly reliable and long-life components
The high-reliability long-life design utilizes Contec's accumulated knowledge of BOX-PC embedded computers. The DX-U1200 can be reliably used for 24/7 systems.
Two Gigabit LAN ports for alternating connections between different network layers
Ideal for edge computing that alternates connections between different network layers such as between video acquisition from a camera and higher-order information system networks.
Flexible installation
With the L-shaped mounting bracket (included as standard), the product can be installed on a wall or the back of a VESA (100 mm) mount-compatible LCD monitor. It can also be mounted on a 35-mm DIN rail with a DIN rail adapter (included as standard).
Wide temperature range
Stable operations of this product are possible over a wide range of temperatures from -20 to 60°C.
