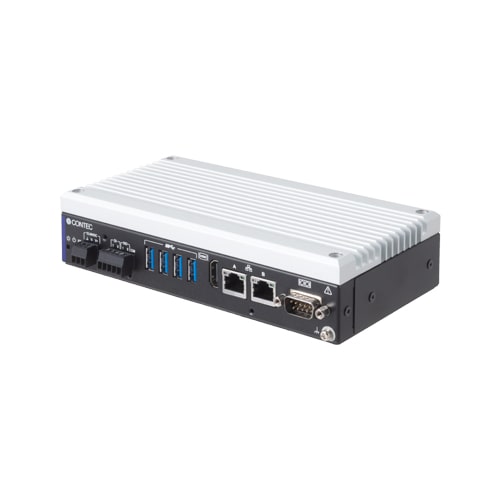

This industrial computer is suitable for AI inference processing and is equipped with NVIDIA® Jetson Xavier NX™ module. It is designed with Dual Gigabit LAN, HDMI, USB x 4, general-purpose I/O, serial port, and RTC, enabling flexible installation and environmental resistance. Additionally, it comes with a large-capacity NVMe storage, giving you the confidence to use it for practical applications.
For rugged environments, a metal plate (already attached to this product) and a connector cap are included to block dust from entering through the ventilation holes.
Similar to the developer kit, it comes pre-installed with Ubuntu, JetPack SDK, and the ability to run applications created with the developer kit.
Usage Examples / Ideal for:
- Surveillance
- Traffic Count
- Predictive Maintenance
- Visual Inspection System
Edge AI accelerator equipped with NVIDIA® Jetson Xavier NX™
Equipped with NVIDIA® Jetson Xavier NX™, the DX-U1200 series can be used in fields requiring on-site AI inference processing, such as image inspection and predictive maintenance.
Equipped with standard NVMe 256GB storage
The standard-equipped high-capacity NVMe 256GB storage offers reliable operation with no need to worry about the capacity of the Jetson Xavier NX™ module’s eMMC.
Equipped with a generous variety of I/O
Multiple USB cameras can be connected simultaneously via the four USB ports for visual inspection of production lines. The unit is also equipped with a serial port (RS-232C/422A/485) convenient for connecting peripheral devices and sensors.
Two Gigabit LAN ports for alternating connections between different network layers
Ideal for edge computing that alternates connections between different network layers such as between video acquisition from a camera and higher-order information system networks.
Flexible installation
With the L-shaped mounting bracket (included as standard), the product can be installed on a wall or the back of a VESA (100 mm) mount-compatible LCD monitor. It can also be mounted on a 35-mm DIN rail with a DIN rail adapter (included as standard).
Wide temperature range
Stable operations of this product are possible over a wide range of temperatures from -20 to 60°C.
