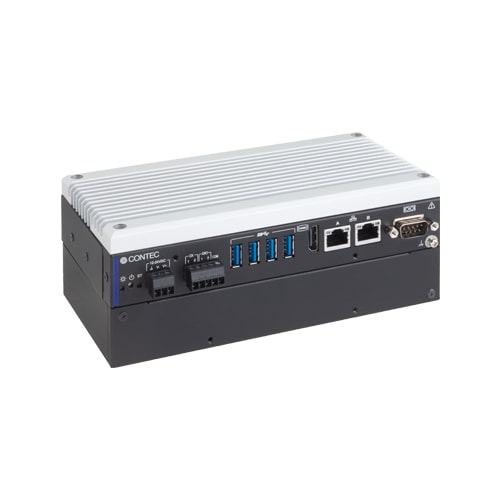

This industrial computer is the perfect solution for AI inference processing, thanks to its NVIDIA® Jetson Xavier NX™ module. It comes fully equipped with Dual Gigabit LAN, HDMI, USB x 2, general-purpose I/O, and RTC, making it easy to install and resistant to harsh environmental conditions. It's the ideal choice for rugged applications, as it provides the flexibility and reliability you need.
Just like the developer kit, this machine already has Ubuntu pre-installed, along with JetPack SDK, allowing you to seamlessly run applications created with the developer kit.
Moreover, the expansion slot model boasts a Low Profile PCI Express slot, enabling functional expansion with a wide range of Low Profile PCI Express boards available from Contec. You can be confident that this industrial computer will meet all your needs with its top-notch features and capabilities.
Usage Examples / Ideal for:
- Surveillance
- Traffic Count
- Predictive Maintenance
- Visual Inspection System
Edge AI accelerator equipped with NVIDIA® Jetson Xavier NX™
Equipped with NVIDIA® Jetson Xavier NX™, the DX-U1200 series can be used in fields requiring on-site AI inference processing, such as image inspection and predictive maintenance.
Equipped with standard NVMe 256GB storage
The standard-equipped high-capacity NVMe 256GB storage offers reliable operation with no need to worry about the capacity of the Jetson Xavier NX™ module’s eMMC.
Equipped with a wide variety of I/O
Multiple USB cameras can be connected simultaneously via the four USB ports for visual inspection of production lines. This unit is also equipped with a serial port (RS-232C/422A/485) convenient for connecting peripheral devices and sensors.
Two Gigabit LAN ports for alternating connections between different network layers
Ideal for edge computing that alternates connections between different network layers such as between video acquisition from a camera and higher-order information system networks.
Flexible installation
With the L-shaped mounting bracket (included as standard), the product can be installed on a wall or the back of a VESA (100 mm) mount-compatible LCD monitor. It can also be mounted on a 35-mm DIN rail with a DIN rail adapter (included as standard).
Equipped with 1x Low Profile PCI Express (x1) slot
This product is also equipped with a PCI Express (x1) slot and enables expanded functionality by means of CONTEC's rich variety of low-profile PCI Express cards, including analog input and serial communication boards.
Wide temperature range
Stable operations of this product are possible over a wide range of temperatures from -20 to 60°C.
