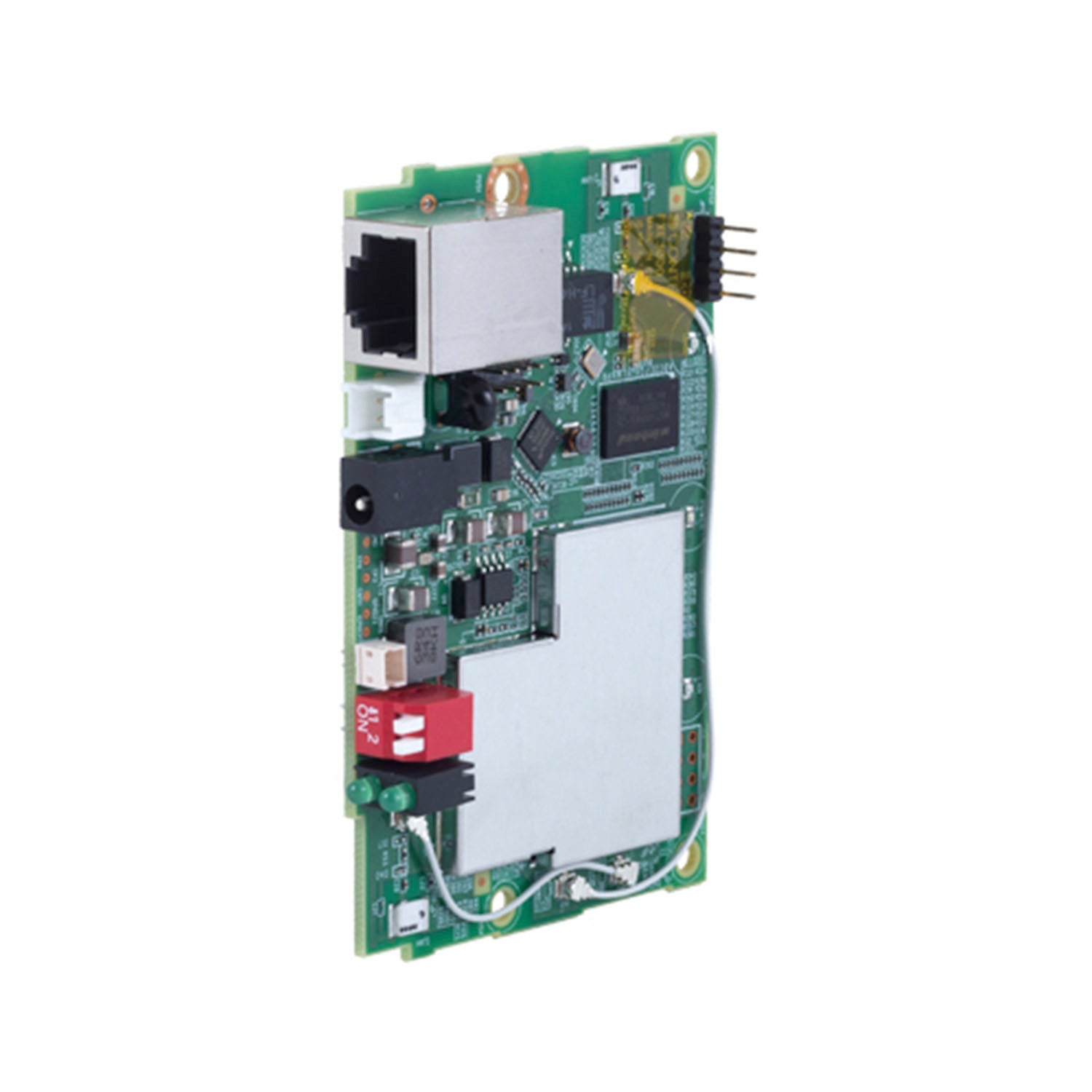

FXE3000 Embedded Wireless LAN Board (Master/Slave Station/Repeater)
FXE3000 Embedded Wireless LAN Board (Master/Slave Station/Repeater)
FXE3000 Embedded Wireless LAN Board (Master/Slave Station/Repeater)
  • SKU: FXE3000-US
  • Availability: In Stock Many in stock Out of stock BUILT TO ORDER - SHIPS IN 2 - 6 WEEKS

FXE3000 Embedded Wireless LAN Board (Master/Slave Station/Repeater)

$335.38
Shipping calculated at checkout.

    This embedded-type wireless LAN board is compatible with the wireless LAN standards IEEE802.11n/a/b/g and supports wide input power supplies (5 to 30 VDC) and power supplied from the LAN connector. This board will work by connecting it to a LAN port of an LAN-compliant equipment because it features latest standard-compatible security, stable communication and easy maintenance without its OS or CPU.

      You can choose 24 channels (W52/W53/W56/W58*1) with 5 GHz (IEEE802.11n/a), and with 2.4 GHz (IEEE802.11n/b/g), you can choose from 1 to 13 channels *2. So, it is possible to design a flexible wireless network to adjust a radio wave interference.


      This board supports an AC adapter (sold separately), DC power supplies from 5 to 30 VDC, and power supplied from the LAN connector.


      You can use this product not only as a station (a slave station) but also as an access point (a master station) and as a repeater by switching modes.


      In addition to the certifications for advanced security standards WPA2/WPA and IEEE802.1X, this board is also equipped with our proprietary encryption technology 'WSL', which can be used at the same time as these certifications. MAC address filtering and ESSID hiding are also supported.


      This board features a VLAN function for constructing virtual networks and a virtual AP function for operating one AP as multiple virtual APs with different security settings. Also, large capacity event logs (with approximately 15,000 events, which is 7 times our conventional products) can be saved.

      General

      Model Online Model
      Unit Type Station / Access Point / Repeater
      Antenna chip-antenna×2 MIMO
      External dimension (mm) 60.0(W) x 89.2(D) x 17.5(H)
      Weight 50g

      Wired LAN

      Model Online Model
      Ethernet standard IEEE802.3(10BASE-T), IEEE802.3u(100BASE-TX)
      Port Speed 410/100Mbps/Half Duplex, Full Duplex/ 1

      Wireless LAN

      Model Online Model
      Wireless Networking Standard IEEE802.11n, IEEE802.11a, IEEE802.11b, IEEE802.11g
      Channel Varies depending on the country in which the product is used.
      IEEE802.11n Data transmission speed *1 300 - 6.5Mbps[MSC0 - 15, Short/Long GI] (Fixed/Auto)
      IEEE802.11a Data transmission speed *1 54, 48, 36, 24, 18, 12, 9, 6Mbps (Fixed/Auto)
      IEEE802.11b Data transmission speed *1 54, 48, 36, 24, 18, 12, 9, 6Mbps (Fixed/Auto)
      IEEE802.11g Data transmission speed *1 54, 48, 36, 24, 18, 12, 9, 6Mbps (Fixed/Auto)
      IEEE802.11n Security WPA(AES), WPA2(AES), WPA-PSK(AES), WPA2-PSK(AES), WSL(combination mentioned above are possible)
      IEEE802.11a/b/g WEP(open/ Shared Key /Auto), WPA(AES, TKIP), WPA-PSK(AES,TKIP), WPA2(AES, TKIP), WPA2-PSK(AES,TKIP), IEEE802.1X(EAP-TLS, PEAP), WSL(combination mentioned above are possible)
      Notes *1 These are theoretical values based on their respective wireless LAN standards; they do not indicate actual data transfer rates.

      Installation Environment Requirements

      Model Online Model
      Input voltage range 5VDC±5% (DC Jack), 5 - 30VDC±5% (power connector), 24VDC±10% (PoE)
      Rating input current 0.83A (5VDC input), 0.15A (30VDC input) (Max.), 0.18A (PoE input 24V)
      Operating ambient temperature 0 - 50°C
      Operating ambient humidity 10 - 90%RH (No condensation)
      Floating dust particles Not extreme
      Corrosive gases None
      Approval standards FCC, IC, WPC, IMDA, UL/cUL, RoHS Compliant
