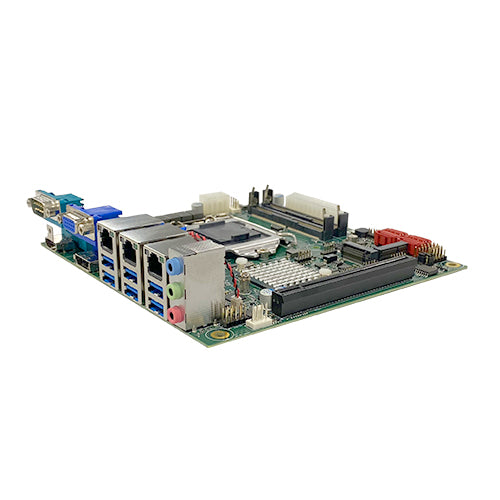

GMB-IW48000 Industrial Motherboard / Mini-ITX / Intel 10th Gen (Comet Lake-S + W480E) / 1x PCIe (x16)

The GMB-IW48000 Industrial Mini-ITX Motherboard supports up to 64GB DDR4-2666 SO-DIMM with ECC available to detect and repair errors that cause data corruption and system crashes. Software RAID (Redundant Array of Independent Disks) function is supported to ensure data security and backup requirements. This board supports up to 10 cores and 20 threads for improved throughput, LGA 1200 socket scalability, 10th generation Intel Core processors for IoT platforms, and offers long-term availability.

• Intel® 10 Gen. Core™ i9/i7/i5/i3/Pentium®/Celeron®/Xeon®W-1290TE , W-1270E, W-1270TE , W-1250E , W-1250TE Processor. (LGA1200)
• 2 x 260-pin DDR4 3200 MHz SO-DIMM socket, supports up to ECC /No-ECC memory. (ECC supported by Processor)
• Supports multiple displays by HDMI, VGA, and Display Port.
• Triple Gigabit Ethernet based on 1 x Intel® I219+ 2 x Intel® I210AT
• Rich I/O includes 4 serial ports, 8 USB ports, GPIO, and audio
• Voltage, FAN speed, and Temperature hardware monitor available.

DOWNLOAD THE DATASHEET

DOWNLOAD THE USER MANUAL

Mini-ITX Motherboard with Best-in-Class Performance and Protection

GMB-IW48000 is based on the Comet Lake-S platform which features up to 10 cores, hyper-threading on all models, single-core turbo boost up to 5.3GHz which is 300 MHz higher, all-core turbo boosts up to 4.9 GHz, DDR4-2933 memory support for the i7 and i9, and DDR4-2666 for i3, and also 10th Generation Intel Core i3 and Intel Xeon W-1200E series processors include error-correcting code (ECC) capabilities.

• ECC Memory Supported
• Intel Xeon W-1290E/W-1290TE
• intel Xeon W-1270E/W-1270TE
• Intel Xeon W-1250E-W1250TE
• Intel Core i3-10100E/10100TE
• Non-ECC Memory Supported
• Intel Core i9-10900E/10900TE
• Intel Core i7-10700E/10700TE
• Intel Core i5-10500E/10500TE

GMB-IW48000 Motherboard Connects Up To Three (3) 4K Displays

Support for three simultaneous, independent displays for edge devices with a 10th generation Intel Core processor inside have three external device driver interface (DDI) ports. This allows you to connect up to three different 4K displays. Each DDI port includes built-in high-bandwidth digital content protection to help you defend data in transit against security breaches.

Mini-ITX Motherboard with Software RAID Available

The GMB-IW48000 has a built-in 4 SATA connector which supports RAID 0, 1, 5, 10 level function. The capacity can be expanded by connecting 2 to 4 HDD or SSD storage devices which allows for easy maintenance and scalability. The RAID function also provides data security and backup.

Expansion Slots and Extended Peripheral Interface

The GMB-IW48000 has 3 kinds of expansion slots, M.2 key M 2242 and full-sized PCIe x 16. Interfaces include VGA, DisplayPort, HDMI, 1000BASE-T x 3, USB 3.2 Gen 2 x 6, USB 2.0 x 4, serial (RS-232C) x 3, serial (RS232C/422/485) x 1.

Manageability at the Edge with Intel Active Management Technology (Intel AMT)

The GMB-IW48000 with Intel Active Management Technology (Intel AMT), a feature of the Intel vPro platform, enables I.T. to access, maintain, and manage edge devices that are off-site or difficult to physically access - even when the device hardware or operating system are powered off or malfunctioning.
