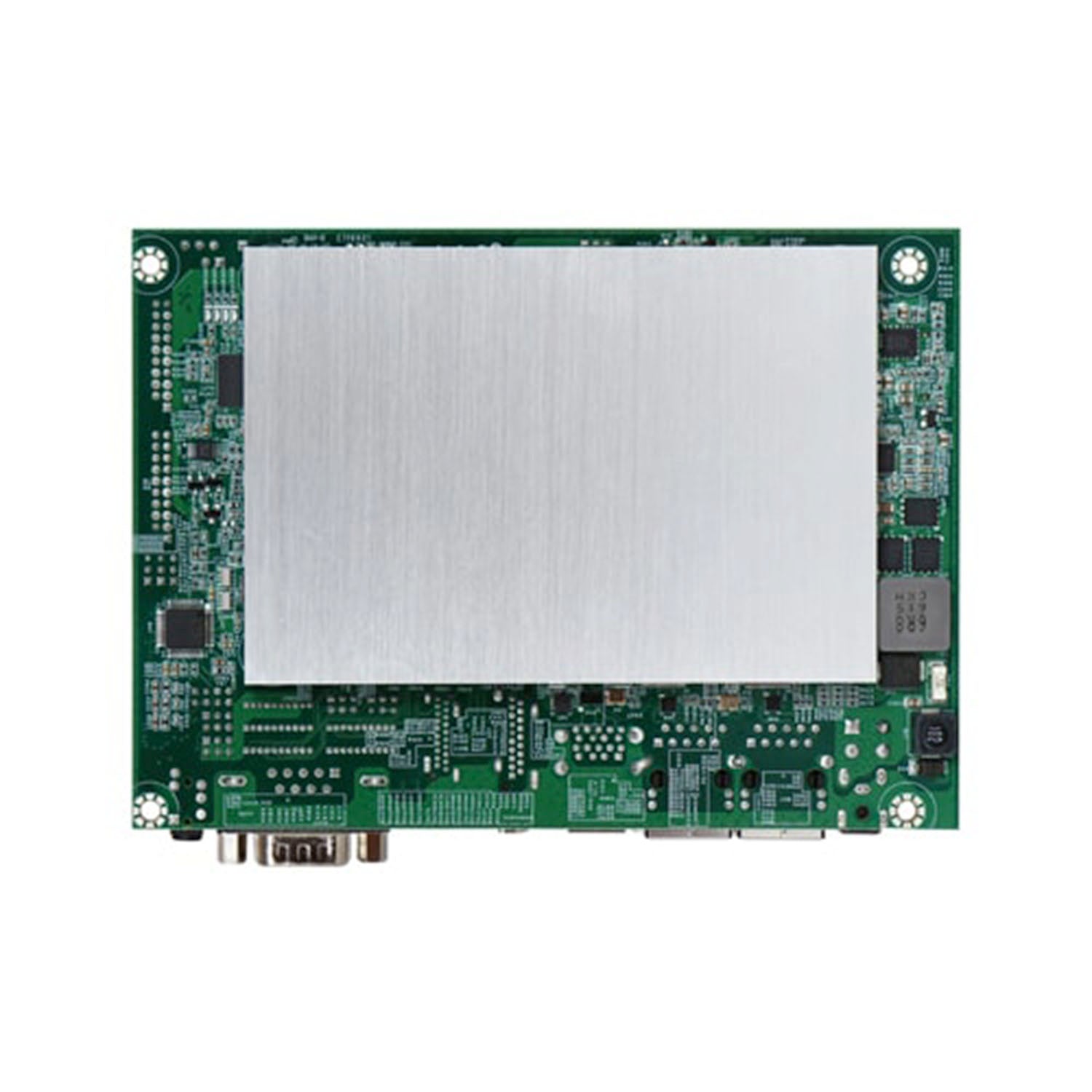

GMB-L3APL300 - Industrial Motherboard / 3.5" SBC / Atom x5-E3930 (Apollo Lake SoC) / 12-24VDC Input / 0-60C Operation

GMB-L3APL300 utilizes the Intel® ECX form factor based on the Intel® Atom™ processor x5-E3930, which includes integrated, enhanced graphics and memory controllers on 14nm process technology, and delivering significant power reduction and performance improvements over the previous Intel® Atom™ processor series. This product can provide the low power consumption for low profile fanless applications such as POS, Print Imaging, ATM, Kiosk, Medical, Panel PC, Digital Security and Digital Signage.

Compatible with Intel® Atom™ Apollo Lake Platform

This product is equipped with the Intel® Atom™ x5-E3930 processor.

Multi-display Supported

GMB-L3APL300 supports triple display includes Display port, HDMI, and LVDS for customers in different application usages.

Dual Mini-PCIe Expansion Slot

Two mini-PCIe sockets are available in GMB-L3APL300 motherboard.
1 x full sized slot support mSATA
1 x half sized slot support WiFi and BT.

Extend Peripherals Freely Rich Interface

This product is equipped with a variety of interfaces such as HDMI, LVDS, LAN x 2, USB3.0 x 4, serial (RS-232C/422A/485) x 1, and audio.
