GMB-MQ67010 Industrial Motherboard / Micro-ATX / Intel 14th Gen (Raptor Lake-S + Q670E) / 2x PCIe (x16) / 2x PCIe (x4)

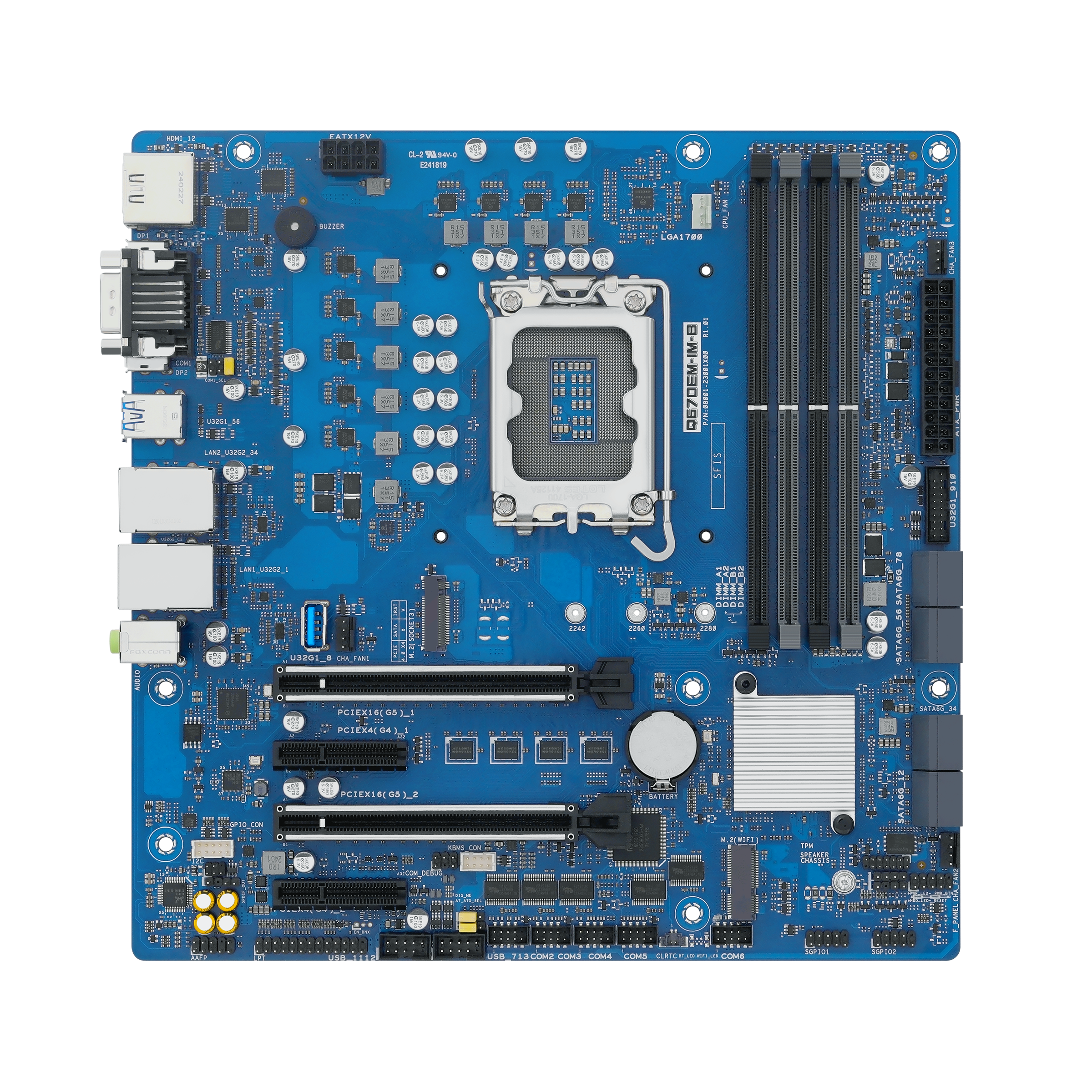

 The GMB-MQ67010 motherboard is designed with an LGA1700 socket that is compatible with 12th, 13th, and 14th Gen Intel® Core™ processors. This Micro-ATX motherboard not only offers superior computing performance but also provides high-speed connectivity with flexible I/O. Additionally, it boasts impressive graphics capabilities that can natively support up to four HD displays through its 2x HDMI and 2x DP ports.

This product is designed to operate across a wide variety of usage models, including manufacturing line control and monitoring, medical analysis and imaging, digital signage, and video surveillance to name a few. The motherboard also includes PCIe and PCI expansion slots, making it a reliable choice for high-end graphics as well as IoT and edge applications.

Intel® Alder Lake-S / Raptor Lake-S Platform

This industrial motherboard is designed to accommodate 12th, 13th, and 14th Gen Intel® Core™/Pentium®/ Celeron® processors. (up to 65W), including embedded CPU SKUs for a stable and long-life supply.

Scalable Graphics Performance

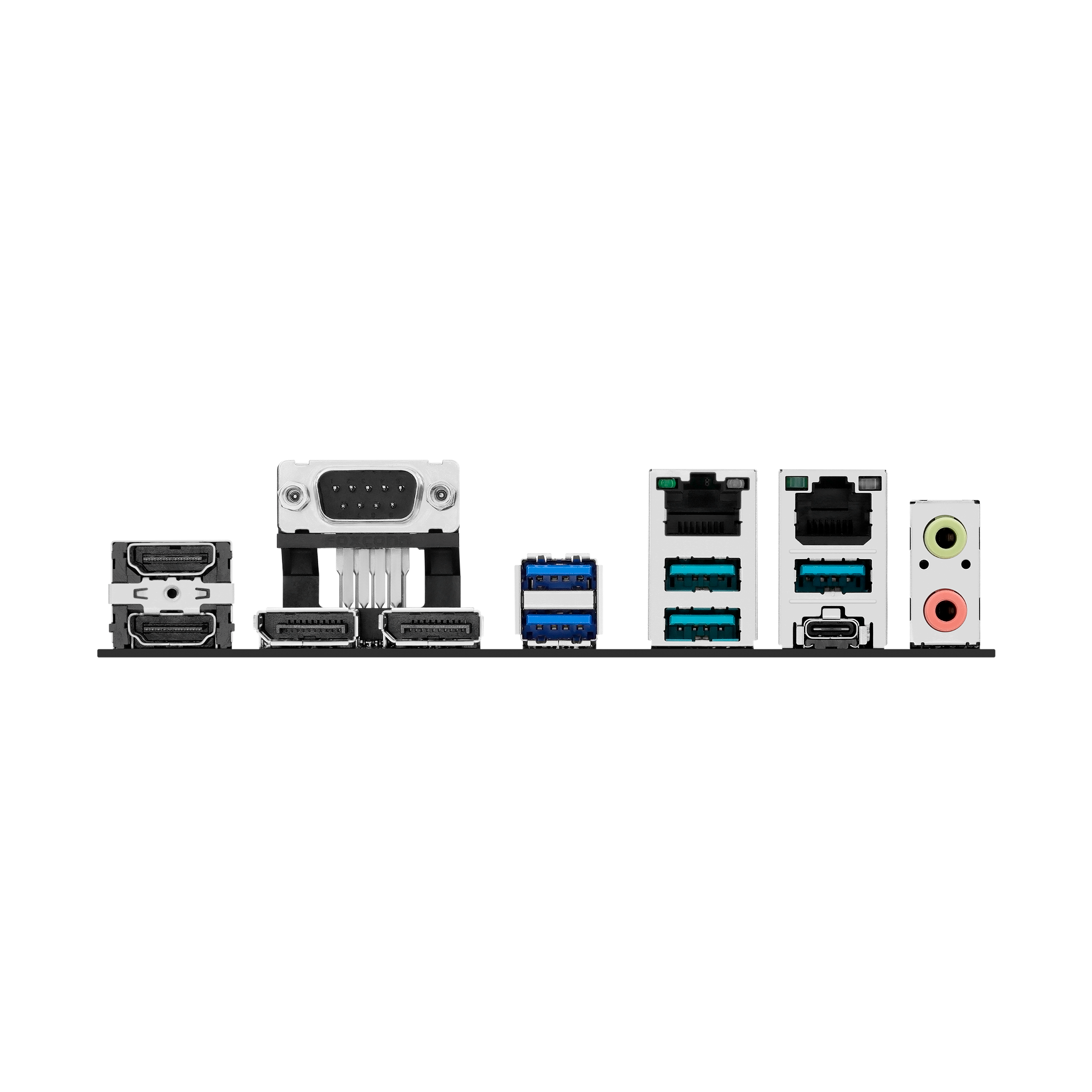

The GMB-MQ67010 natively supports full HD outputs for up to four screens with the 2x DisplayPort, 2x HDMI port outputs.  In addition, this motherboard includes a 2x PCIe x16 slots to accommodate higher-performing graphics cards making this motherboard optimal for high-end digital signage, casino gaming machines, and video surveillance.

Plethora of I/O for Flexible Usage Models

This product is equipped to support a rich variety of interfaces including: up to 6x serial ports, I2C, up to 12x USB ports, 8x GPIOs, audio jack, line-out/ mic-in port, and 4x PCIe expansion slots. The MQ67010 also has a 0-60C operational temperature range making this motherboard ideal for a wide range of industrial applications.
