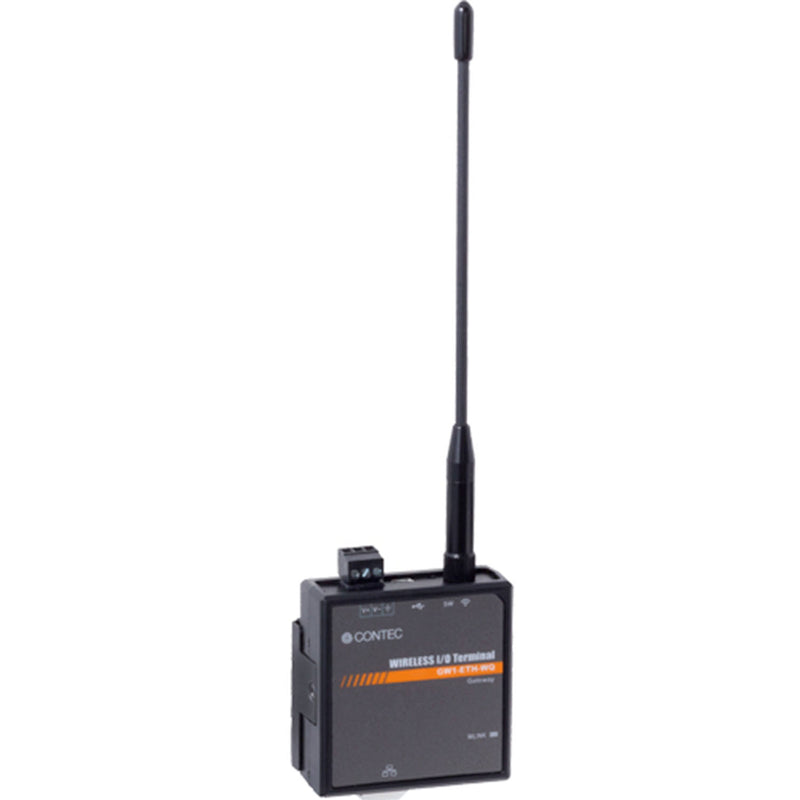

GW1-ETH-WQ-US Sub-1GHz Band Wireless to Ethernet LAN Gateway
GW1-ETH-WQ-US Sub-1GHz Band Wireless to Ethernet LAN Gateway
GW1-ETH-WQ-US Sub-1GHz Band Wireless to Ethernet LAN Gateway
GW1-ETH-WQ-US Sub-1GHz Band Wireless to Ethernet LAN Gateway
  • SKU: GW1-ETH-WQ-US
  • Availability: In Stock Many in stock Out of stock BUILT TO ORDER - SHIPS IN 2 - 6 WEEKS

GW1-ETH-WQ-US Sub-1GHz Band Wireless to Ethernet LAN Gateway

$320.13
Shipping calculated at checkout.

    This Ethernet gateway converts Ethernet into wireless in the Sub-1GHz band.

    Data from the Wireless I/O series terminal (Slave) can be sent to a PC via Ethernet, or PC received data can be sent via Ethernet.

    The long-distance communication capability thanks to the wireless Sub-1GHz band, and multi-hop support, makes this module suitable for controlling and monitoring devices that are spread in the wide area.

    By using a driver library appropriate to the setting terminal, applications can be created with API functions that support programming languages.

    This module also supports Modbus TCP Slave, which makes it possible to control devices and collect data from the higher communication devices containing Modbus Master function.

    * This product should always be used along with the Wireless I/O series terminal (Slave).

    * Driver library can be downloaded from CONTEC’s website.

    * The GW1-ETH-WQ-US can be used in the United States.

    *1 Sub-1GHz band indicates frequency bands of 1GHz and below.  Available frequency band of the product depends on the model. The GW1-ETH-WQ-US can be used in the 902 - 928MHz band (North America).

    Hardware specification

    Model Online Model
    Wireless Modulation system GFSK
    Speed *1 10kbps (Low data rate) /
    110kbps (Middle data rate) /
    250kbps (High data rate)
    Output 13dBm
    Used frequency 902 - 928MHz
    Ethernet Connector RJ-45
    Standard IEEE802.3 / IEEE802.3u
    Data transmission speed 10Mbps / 100Mbps
    Access method CSMA/CD
    Number of ports 1
    USB Bus specification USB Specification 2.0/1.1-compliant*2
    Data transmission speed 12Mbps (Full speed), 480Mbps (High speed)
    Function USB device
    Connector mini-B USB connector
    Antenna Non-directional dipole antenna (2.0±0.7dBi)
    Power supply Input voltage range 12 - 24VDC±5%
    Current consumption 120mA (at 12VDC input) (Max.)
    70mA (at 24VDC input) (Max.)
    Power connector European type terminal 3.5 pitch 3-pin jack connector
    Physical dimensions (mm) 62.0(W) x 64.0(D) x 24.0(H) (No projection included)
    Weight 100g (With bundled antenna, power connector)
    Notes: *1 It is a theoretical maximum value on wireless communication and does not indicate the actual data speed.
    *2 This product cannot be used with USB bus power. Make sure to use the external power that supplies 12VDC or 24VDC voltage.

    Environmental Specifications

    Model Online Model
    Operating ambient temperature -20 -+60°C*3
    Operating ambient humidity 10 - 90%RH (No condensation)
    Floating dust particles Not to be excessive
    Corrosive gases None
    Line noise AC Line/±2kV, Signal Line /±1kV (IEC61000-4-4 Level 3, EN61000-4-4 Level 3)
    Static electricity resistance Touch /±4kV(IEC61000-4-2 Level 2, EN61000-4-2 Level 2)
    Air /±8kV(IEC61000-4-2 Level 3, EN61000-4-2 Level 3)
    Sweep resistance 10 - 57Hz /semi-amplitude vibration 0.15mm, 57 - 150Hz/2.0G
    40minutes each in X, Y, and Z directions (JIS C60068-2-6-compliant, IEC60068- 2-6-compliant)
    Shock resistance 147m/s2(15G)/11ms/half-sine shock (JIS C 60068-2-27 -compliant, IEC 60068-2-27 -compliant)
    Standard FCC Class A, RoHS Directive
    Notes:  *3 Specification temperature of POA201-10-2 is 0 - 40°C.
    *4 When using an optional AC adapter POA201-10-2.
