Description

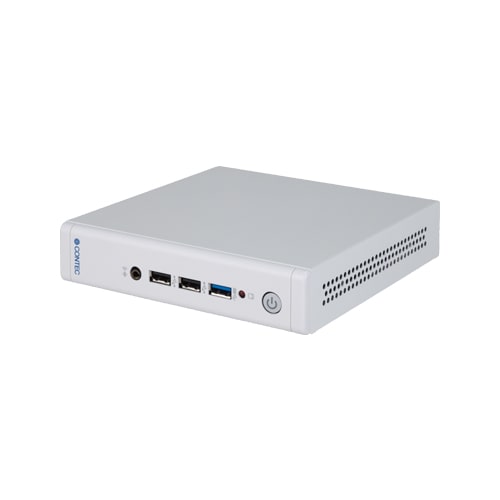

The LPC-400 is a fanless business computer with an Intel® Celeron J6412 quad core processor and 8GB memory for business and enterprise applications. This PC includes a rich set of interfaces such as HDMI, 2x GbE LAN ports, 3x USB 3.2 Gen 2 (USB3.1), 2x USB2.0 and 1x USB Type-C. The use of readily available parts ensures high availability and short lead times. In addition, Contec's BIOS tools allow faster boot times and for customizations to be provided at the BIOS level. The LPC-400 features a compact, low-profile chassis design and can be installed on the back of a display by using an optional VESA mounting bracket.
Primary Intended Usages
- Factory line computing
- Digital signage
- Reception terminal
- Desktop computer
Ultra Compact Business Computer That Can Be Installed Anywhere

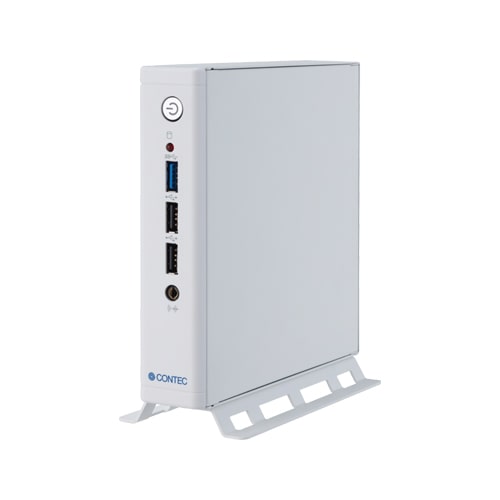

- With a very compact size of 150 (W) × 150 (D) × 33 (H) mm, this product can be used with a vertical stand or VESA mounting bracket to be installed almost anywhere, from tight spaces on a desktop to the back of a monitor.
Small in size but rich in features

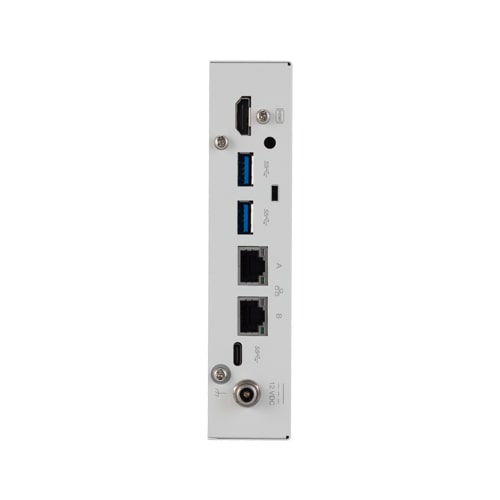

- Interfaces include: 1x HDMI, 2x GbE LAN, 3x USB 3.2 Gen2, 2x USB 2.0, and 1x USB Type-C x 1. The optional VESA mounting bracket enables installation on the back of a VESA-compliant display. The LPC-400 is also equipped with a Kensington NanoSaver security slot to physically secure your unit.
Validated with embedded OS including lockdown function
The LPC-400 is validated with Windows 10 IoT Enterprise LTSC 2021 ensuring reduced maintenance and long-term operation. LTSC (Long-Term Servicing Channel) enables operation in the same environment for up to 10 years. With Windows IoT, OS updates are limited to critical quality updates only, reducing maintenance resources required to revalidate.
Lockdown function for reliability and security
Protect your data with Contec's "System Power Failure Protection"
- The LPC-400 features a system power failure protection function that protects data and prohibits writing to M.2 storage in the event of power failure. Along with the lockdown (disk writing suppression) function of Windows IoT Enterprise, power can be safely turned off without a shutdown process. Moreover, file system damage or data damage caused by a sudden power failure can be avoided.
Key security features contribute to a highly reliable system
- Several security functions such as TPM2.0 and Intel Secure Boot, as well as Contec's USB Boot Protect are provided. This product is designed with the security features required for enterprise applications.
Contec-customized BIOS tools provide additional benefits
- Achieve a 10-second boot time with Contec Fast Boot. The Disk Copy function provides a secure disk backup at the BIOS level. Contec also provides a BIOS Update Tool for updating defualt BIOS settings.
Fanless design for a longer product life
- The LPC-400 is a fanless design with no moving parts ensuring longer product life and less cost for downtime and maintenance.
