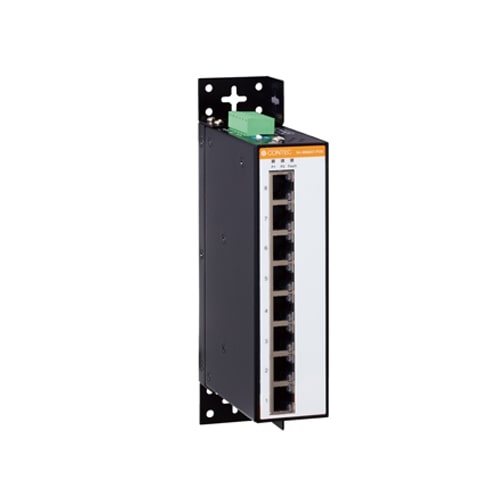

SH-9008AT-POE Industrial Gigabit PoE Ethernet Switching HUB / 8-port
SH-9008AT-POE Industrial Gigabit PoE Ethernet Switching HUB / 8-port
SH-9008AT-POE Industrial Gigabit PoE Ethernet Switching HUB / 8-port
SH-9008AT-POE Industrial Gigabit PoE Ethernet Switching HUB / 8-port
  • SKU: SH-9008AT-POE
  • Availability: In Stock Many in stock Out of stock BUILT TO ORDER - SHIPS IN 2 - 6 WEEKS

SH-9008AT-POE Industrial Gigabit PoE Ethernet Switching HUB / 8-port

Shipping calculated at checkout.

    This 8-port industrial switching HUB conforms to IEEE802.3ab (1000BASE-T) / IEEE802.3u (100BASE-TX) / IEEE802.3 (10BASE-T) standard, and it is capable of PoE power supply based on IEEE802.3af, IEEE802.3at. By using a LAN cable of category 5 or greater, power can be supplied to PoE devices that conform to IEEE802.3af and IEEE802.3at.

    The functions including jumbo frames, AutoMDI / MDI-X, and auto negotiations are within. Due to the fan-less design, this hub can be used in the places where the quietness or a longer lifetime of the product is desired. Furthermore, a metal housing with excellent heat dissipation enables the product to be operated in a wide temperature range between -35°C and 70°C. The Hub can be mounted on 35mm-DIN rail or on the wall with the supplied brackets.

    IEEE 802.3af / IEEE 802.3at-based PoE power

    Power can be supplied from all eight ports to PoE devices that support the IEEE 802.3af and IEEE 802.3at standards. The SH-9008AT-POE can supply up to 30W per port and up to 120W* over all ports.
    * With a 12 VDC input power supply voltage, the total PoE power available will be 60 W. With a 24/48 VDC input, the total PoE power available will be 120 W.

    Support for a wide range of power supplies (12 to 57 VDC) and dual power supplies

    This Hub supports DC power supplies from 12 to 57 VDC. Support for dual power supplies also means the hub can still be operated even if there is a problem with one of the power supplies. If a problem occurs in a power supply, LEDs on the front panel and abnormality detection relay circuits make it easy to identify the problem quickly.

    Built-in boost DC-DC power supply enables 48V PoE output with 12 to 24VDC input

    Equipped with eight 1000BASE-T-compatible PoE power supply ports

    The switching hub is equipped with eight ports that comply with the IEEE 802.3ab (1000BASE-T), IEEE 802.3u (100BASE-TX), and IEEE 802.3 (10BASE-T) standards. All 8 ports support PoE power supply functionality.

    Mountable on DIN rails or walls

    The mounting bracket included with the SH-9008AT-POE can be used for easy mounting on a 35 mm DIN rail or wall surfaces.

    Usable in ambient temperatures of −35 to 70°C

    The product’s metal housing with excellent heat dissipation allows for use in various environments with ambient operating temperatures of −35 to 70°C. The fanless design also makes it possible to use the SH-9008AT-POE in locations requiring quiet operation and long service life.


    Item Specifications
    Ethernet standards IEEE802.3/IEEE802.3u/IEEE802.3ab/IEEE802.3af/IEEE802.3at*1 –compliant
    Data transfer rate 10Mbps/100Mbps/1000Mbps (auto-negotiation)
    Communications method All ports: Full/Half duplex (auto-negotiation)
    Flow control Full Duplex : IEEE802.3x compliant flow control
    Half Duplex : Back pressure
    Number of effective ports 8
    Switching method Store and forward
    Address table 4,096 entries
    Jumbo frame 9Kbyte
    Buffer capacity 192Kbyte
    Aging time 300 seconds
    LED indicator POWER x 2 (Green), PWR Failure(Orange),
    LINK/ACT x 8 (Green/Orange), PoE x 8 (Green)
    DIP switch Power failure detection function switch for PWR-1 and PWR-2
    Power supply voltage 12V - 57VDC±5%
    FG pin Power supply connector equipped with FG pin
    Power consumption (Max.) When PoE is not in use: 12V 0.47A, 24V 0.24A, 57V 0.10A
    When PoE is in use: 12V 7.56A, 24V 7.22A, 57V 3.04A
    Physical dimensions (mm) 41(W)×94.9(D)×144.3(H) (exclusive of protrusions)
    Weight 700g
    Module installation method Mounting on DIN rail or on the wall
    *1 When the supplied voltage is 24VDC-57VDC: The maximum power by PoE is 120W in total for all ports. When the supplied voltage is less than 24VDC-57VDC: The maximum power by PoE is 60W in total for all ports.

    Installation Environment Requirements

    Item Specifications
    Operating ambient temperature -35 - +70°C
    Operating ambient humidity 5 - 95%RH (No condensation)
    Non-operating ambient temperature -38 - +70°C
    Non-operating ambient humidity 5 - 95%RH (No condensation)
    Floating dust particles Not to be excessive
    Corrosive gases None
    Line-Noise resistance Line-noise AC line/2KV, Signal line/1KV (EN61000-4-4Level 3, IEC61000-4-4Level 3)
    Static electricity resistance Contact discharge/4KV (EN61000-4-2Level 2, IEC61000-4-2Level 2)
    Atmospheric discharge/8KV (EN61000-4-2Level 3, IEC61000-4- 2Level 3)
    Vibration resistance Sweep resistance 10 - 57Hz/semi-amplitude 0.075mm,57 - 150Hz/9.8M/s2(1G),
    40minutes each in X, Y, and Z directions
    (JIS C60068-2-6-compliant, IEC60068-2-6-compliant)
    Impact resistance 10G, half-sine shock for 11ms in X, Y, and Z directions
    (JIS C60068-2-27-compliant, IEC60068-2-27-compliant)
    Grounding Class D grounding, SG - FG/ non-conductive
    Standard VCCI Class A, FCC Class A,
    CE Marking (EMC Directive Class A, RoHS Directive)
