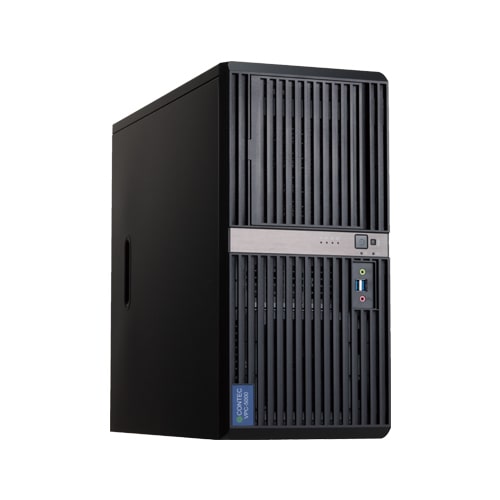

VPC-5000-G Built-to-Order (BTO) Industrial Computer

    This built-to-order (BTO) industrial computer is equipped with Intel C246 chipset for server workstations. It can be equipped with an Intel Xeon E 2200-series or 9th generation Intel Core processor, up to 64 GB of ECC memory, up to 4 hot-swap hardware RAID configurations and more.

    Download the VPC-5000G datasheet.

    High-performance Xeon processor compatible FA computer.

    Compatible with Intel® Xeon® E-2200 Processors or 9th generation Intel® Core® Processors. Up to 64GB of ECC memory can be installed. Applicable for transportation, social infrastructure,  medical equipment,  security, amusement, and other fields requiring advanced multiple processing.

    Highly reliable and long-life components for 24-hour operation.

    The computer is designed for high reliability and durability with the know-how of the Box computer®, which is synonymous with built-in PCs, in various places. Hot-swappable hardware RAID configurations enable a user to replace storage even when the system is running. It can be used with confidence in systems that require high availability.

    Supports Windows 10 IoT Enterprise LTSC and Windows Server IoT*

    The LTSC (Long Term Servicing Channel) version of Windows is installed to discourage unnecessary restarts or unwanted feature updates for operational applications. The product has a lockdown function that is useful for developing secure dedicated terminals. A user can select a language from English, Chinese, Japanese, or Korean in Windows 10 IoT Enterprise 2019 LTSC, and can decide to use Windows Server IoT 2019*1, which is suitable for edge servers that require server-class multiple processing and network performance.

    Long-term product availability and maintenance

    In addition to longer-term product availability and maintenance services, a long-term on-site maintenance service is provided (for a fee). It reduces the life cycle costs for operation checks or device alterations/improvements each time PC model changes.

    *Coming soon

    Function specification

    Item Description
    CPU [Selection] Intel® Xeon® E-2278GE / E-2226GE / CoreTM i3 9100E / Celeron® G4900
    Chipset Intel® C246
    BIOS AMI BIOS
    Memory [Selection] 64GB max. (DDR4-2666) ECC SDRAM
    8GB : 8GB x 1, 16GB : 8GB x 2, 32GB : 16GB x 2, 64GB : 32GB x 2
    Storage [Selection] Removable drive, SATA III 3.5inch bay x 4
    (2.5-inch storage can be installed)
    3.5inch HDD 2TB, 2.5inch SSD 256GB, 512GB
    Optical drive DVD super multi drive
    Interface Display Analog RGB x 1, HDMI x 1, DisplayPort x 1, Outputs with three displays (HDMI, DisplayPort : 4K output, Analog RGB : 1080p)
    USB Type-A connector
    Front : USB3.1 Gen 1(USB3.0) x 2
    Rear : USB3.1 Gen 1(USB3.0) x 4, USB2.0 x 2
    Audio Audio compliant
    Front : Line output x 1, Mic input x 1,
    Rear : Line output x 1, Line input x 1, Mic input x 1
    Serial 9pin D-SUB connector [male]
    RS-232C / 422A / 485 x 1, RS-232C x 4
    LAN 2ports (RJ-45 connector)
    1000BASE-T / 100BASE-TX / 10BASE-T, Wake On LAN
    Digital I/O Rear : 2 x Outputs, 4 x Inputs
    RAS function WDT : 1sec - 255sec (Resetting operation by time up)
    Remote reset/Remote power on External input signal
    Monitoring function (Fan rotation, CPU temperature, Voltage data reading)
    Extended slot PCI Express(x16) slot x 1, PCI Express(x4) slot x 3, PCI slot x 3
    Security (TPM) TCG TPM2.0
    OS None
    Windows 10 IoT Enterprise 2019 LTSC 64bit (Japanese / English / Chinese / Korean)
    Supply voltage 100 - 240VAC
    Physical dimensions (mm) 430(W) x 491(D) x 204.2(H) (No protrusions)
    Weight About 14Kg
    (with HDD x 1 and optical drive x 1. The weight may vary depending on configuration.)

    Ambient specification

    Item Description
    Operating temperature 5 - 40°C
    Non-operating ambient temperature -20 - 60°C
    Operating humidity 20 - 80%RH (No condensation)
    Non-operating ambient humidity 20 - 80%RH (No condensation)
    Floating dust particles Not to be excessive
    Corrosive gases None
    Line-noise resistance Static electricity resistance Contact discharge / ±4kV
    (EN61000-4-2 Level 2, IEC1000-4-2 Level 2),
    Atmospheric discharge / ±8kV
    (EN61000-4-2 Level 3, IEC1000-4-2 Level 3)
    Line noise AC line / 2kV, Signal line /1kV
    (EN61000-4-4 Level 3, IEC1000-4-4 Level 3)
    Vibration resistance Sweep resistance When the HDD is on : 10 - 50Hz/ 0.5G 25 min. each in x, y, and z directions (JIS C60068-2-6-compliant, IEC60068-2-6-compliant)
    When the SSD is on : 10 - 57Hz/semi-amplitude 0.075mm 57 - 150Hz/1.0G 40 min. each in x, y, and z directions
    (JIS C60068-2-6-compliant, IEC60068-2-6-compliant)
    Impact resistance 10G, half-sine shock for 11ms in X, Y, and Z directions (JIS C0041 compliant, IEC68-2-27 compliant)
    Grounding Class D grounding, SG-FG / continuity
    Standard VCCI Class A, FCC Class A

    Option Mirror card specification

    Item Description
    Number of connected drives 2
    RAID level 1
    Storage capacity Max. 2TB
    Cache memory size 1MB
    Host interface S-ATA (Max. data transfer rate : 6Gbps)
    Drive interface S-ATA (Max. data transfer rate : 6Gbps)
    Range of power-supply voltage 4.75VDC - 5.25VDC
    Current consumption 1.1A - 1.5A
    Physical dimensions (mm) 96(L) × 98.2(W)
    Weight 51g (Max.)
