GPD-U64EM-DC2GPD-U64EM-DC2 - Flat Panel Display / VESA Mountable / 19-inch LCD / PCAP Touch Screen / DC Power Supply
GPD-U64EM-DC2GPD-U64EM-DC2 - Flat Panel Display / VESA Mountable / 19-inch LCD / PCAP Touch Screen / DC Power Supply
GPD-U64EM-DC2GPD-U64EM-DC2 - Flat Panel Display / VESA Mountable / 19-inch LCD / PCAP Touch Screen / DC Power Supply
GPD-U64EM-DC2GPD-U64EM-DC2 - Flat Panel Display / VESA Mountable / 19-inch LCD / PCAP Touch Screen / DC Power Supply
  • SKU: GPD-U64EM-DC2
  • Availability: In Stock Many in stock Out of stock BUILT TO ORDER - SHIPS IN 2 - 6 WEEKS

GPD-U64EM-DC2GPD-U64EM-DC2 - Flat Panel Display / VESA Mountable / 19-inch LCD / PCAP Touch Screen / DC Power Supply

$658.56
Shipping calculated at checkout.

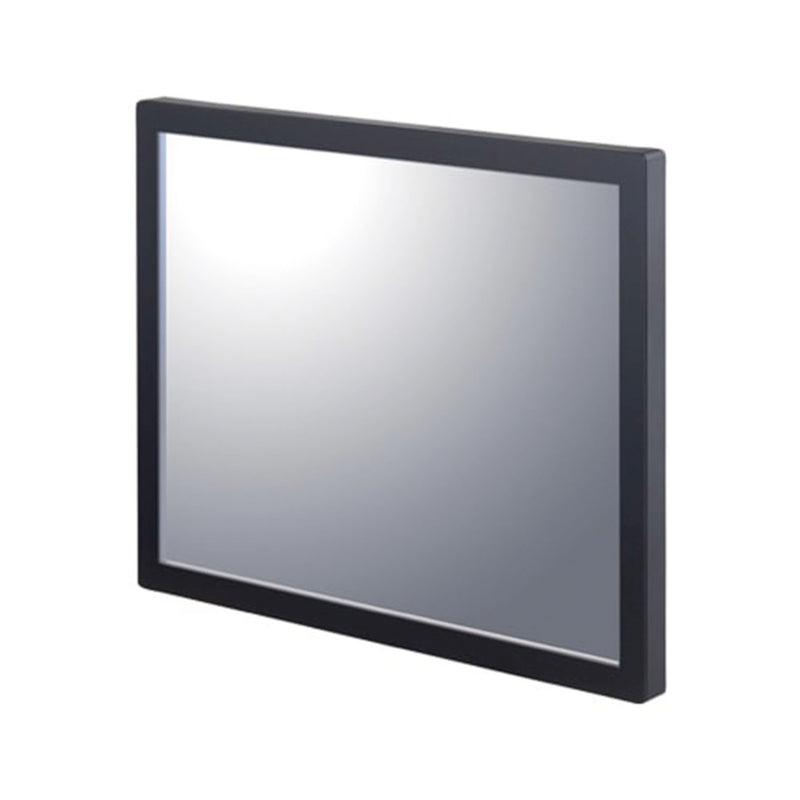

    This 19-inch On-Screen Display features a high-performance touch screen. You can touch the screen with your finger and use it as a tablet PC. This panel display can be used to control production lines, to provide work instructions, to manage access, and to operate industrial devices through the screen.

    Projected Capacitive (PCAP) Touch Screen for Smooth Touch Operation

    The GPD-U64EM-DC2 panel display features a Projected Capacitive (PCAP) touch screen that enables 10-point multi-touch operations to facilitate smooth operability. The panel offers excellent scratch resistance and clarity.

    Compatible with VESA Standard (100 x 100 mm)

    Mounting the device on a VESA arm enables flexible screen angle adjustments even when embedded in a device.
    * The device does not included panel mounting holes. Only VESA mounting is possible.

    IP65 Compliant Front Panel

    The panel display front part is dust-proof and splash-proof which is compliant with the IP65 Standard.

    Works with 24 VDC Power Supplies

    The power supply input supports 24 VDC (±10%, 3-terminal) sources, and the power supply can be shared with other embedded devices.

    Complies with Various Safety Standards

    This panel display is compliant with VCCI Class B, FCC Class B, CE marking (EMC Directive Class B, RoHS), and CCC safety standards.

    Function Specifications

    Item Description
    Display Specifications Panel type 19-inch non-glare treatment TN panel
    Resolution (max) 1280 x 1024
    Contrast ratio 1000 : 1
    Luminance (Back light type) 225 nits (Projected capacitive)
    View angle H:170°, V:160°
    Touch screen specifications Touch screen Projected capacitive
    Touch points 10
    Touch screen interface USB-HID (Type B)
    I/O port USB port 1 x USB 2.0 (Type B)
    For Touch screen interface (USB = HID)
    Video port 1 x VGA (DB15), 1 x DVI
    Audio port N.A.
    Power input 3 terminals ( with covers)
    Other Compatible OS Windows10 IoT Ent.
    Chassis color Black (Background color : Black)
    Structure Glass, metal
    Dust-proof, Drip-proof Display front side IP54-compliant IP65
    Physical dimensions (mm) 416.0(W) x 344.0(H) x 46.6(D)
    Weight 4.4 kg
    VESA 100 x 100 mm
    Power consumption 20W (Typ.) (24VDC, 0.83A)
    25W (Max.) (24VDC, 1.04A)

    Environment Requirements

    Item Description
    Operating temperature 5 - 40°C
    Operating Humidity 20 - 80%RH (No condensation)
    Storage temperature -20 -+60°C
    Operating Humidity 10 - 90%RH (No condensation)
    Floating dust particles Not to be excessive
    Corrosive gases None
    Vibration resistance Sine wave vibration 0.25G 0 to Peak, 10 to 500Hz, 0.25 octave / minute sweep rate.
    This requires one sweep of 10 to 500 to 10 Hz for each of the three axes
    Random vibration 0.002 G2 / Hz, 10 to 500Hz, nominal 1.0 Grms.
    The test should be 30- minute-long for each axis
    Shock resistance Half-sine shock 30G-peak acceleration 2 milliseconds duration 3 axes each
    The number of shock inputs in each direction should be sufficient so that the performance of the monitor can be evaluated
    Square wave shock 50G peak acceleration, 180 inches / second velocity change.
    Once for each axis, the total of 6 shock inputs
    Standard VCCI Class B, FCC Class B, CE Marking (EMC Directive Class A, RoHS Directive) *1, CCC
    Standard RoHS2 (includes the bundled cables)
    Notes: *1 In order to suit CE standards, DVI cable length uses a thing of 3 m or less.
