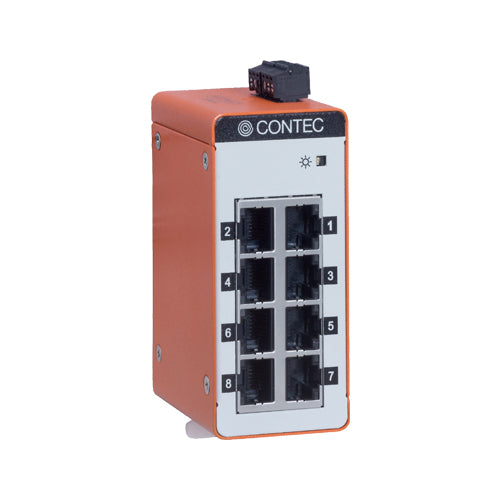

SH-8008F FLEXLAN Series 8 port 10/100M Unmanaged Industrial Switching HUB
SH-8008F FLEXLAN Series 8 port 10/100M Unmanaged Industrial Switching HUB
SH-8008F FLEXLAN Series 8 port 10/100M Unmanaged Industrial Switching HUB
SH-8008F FLEXLAN Series 8 port 10/100M Unmanaged Industrial Switching HUB
Sold Out
  • SKU: SH-8008F
  • Availability: Out of stock

SH-8008F FLEXLAN Series 8 port 10/100M Unmanaged Industrial Switching HUB

$119.35
Shipping calculated at checkout.

    This compact-sized industrial switching HUB [40(W) x 60(D) x 90(H)mm] with 8 ports compliant with IEEE802.3u(100BASE-TX) / IEEE802.3(10BASE-T). In addition, the Auto MDI/MDI-X features automatic negotiation. The Hub features two power supplies, and a function that prevents power from connecting in reverse.

    This Hub offers eight ports for IEEE802.3u (100BASE-TX)/ IEEE802.3 (10BASE-T), and a compact size (40(W) x 60(D) x 90(H) mm). It is ideal for the place where quietness is required as the product contains no fan. The product is created with metal that is excellent in heat dissipation and it is able to operate in a wide temperature range between -20 and + 60°C.

    The Auto MDI/MDI-X feature automatically determines straight or crossover cable, avoiding wiring trouble due to a wiring mistake. Moreover, auto-recognition function of communication rates (10/100Mbps) and communication methods (half/full duplex) by the auto-negotiation feature.

    As the product is mounted on the 35mm DIN rail, removing and replacing it is easy.

    It is compatible with 12 - 24VDC wide power range and can be used in various power environments. In addition, An FG terminal is equipped in the power connector.

    Specifications

    Item Specifications
    Ethernet standards IEEE802.3/IEEE802.3u-compliant
    Data transfer rate 10Mbps/100Mbps (auto-negotiation)
    Access method CSMA/CD
    Communications method All ports: Full/Half duplex (auto-negotiation)
    Topology Star topology
    Flow control Full Duplex : IEEE802.3x compliant flow control
    Half Duplex :Back pressure
    Number of effective ports 8
    Switching method Store and forward
    Filtering speed 8,130pps (at 10Mbps) / 148,800pps (at 100Mbps)
    Forwarding speed 8,130pps (at 10Mbps) / 148,800pps (at 100Mbps)
    Address table 1,024 entries
    Buffer capacity 448Kbits
    Aging time 300sec (Max.)
    LED indicator POWER(Green), LINK/ACT (Green),
    SPEED 10/100M (Orange)
    Power supply voltage 12V - 24VDC±5%
    Hybrid supply system *1 Enable
    Reverse polarity protection Enable
    FG pin Power supply connector equipped with FG pin
    Power consumption (Max.) When inputting 12V : 0.12A, When inputting 24V : 0.06A
    Physical dimensions (mm) 40(W) x 60(D) x 90(H) (exclusive of protrusions)
    Material of the case Metal shell
    Weight 215g
    Module installation method Attachment of a 35mm DIN rail.
    *1 This product can operate with a single power supply. Also, you can add redundancy to the power supply by adding a second power supply input.

    Installation Environment Requirements

    Item Specifications
    Operating temperature -20 - 60ºC
    Storage temperature -20 - 60ºC
    Humidity 10 - 90%RH(No condensation)
    Floating dust particles Not to be excessive
    Corrosive gases None
    Line-Noise resistance Line-noise AC line/2kV, Signal line/1kV (JIS C61000-4-4Level 3, EN61000-4-4Level 3)
    Static electricity resistance Contact discharge/4kV (JIS C61000-4-2Level 2, EN61000-4-2Level 2)
    Atmospheric discharge/8kV (JIS C61000-4-2Level 3, EN61000-4-2Level 3)
    Vibration resistance Sweep resistance 10 - 57Hz/semi-amplitude 0.15mm, 57 - 150Hz/2.0G
    40minutes each in X, Y, and Z directions
    (JIS C60068-2-6-compliant, IEC60068-2-6-compliant)
    Impact resistance 15G, half-sine shock for 11ms in X, Y, and Z directions
    (JIS C60068-2-27-compliant, IEC60068-2-27-compliant)
    Protection IP20
    Grounding Class D grounding (previous class 3 grounding)
    Standard VCCI Class A, FCC Class A, UL,
    CE Marking (EMC Directive Class A, RoHS Directive)
